Binder BF 59 laboratory incubator
€2.291,00 excl. VAT
- Volume: 59 liter
- Excellent temporal and spatial temperature accuracy
- High process reliability
- 100°C disinfection routine
- Temperature range: +7°C above ambient temperature to +100°C
- High temperature accuracy thanks to APT.line™ technology
- Forced convection
- Controller with LCD display
- Electromechanical control of the exhaust air flap
- Inner door made of tempered safety glass
- 2 chrome-plated racks
- Stackable
- Class 3.1 integrated independent temperature safety device (DIN 12880) with
- visual alarm
- Ergonomic handle design
- USB port for recording data
Description

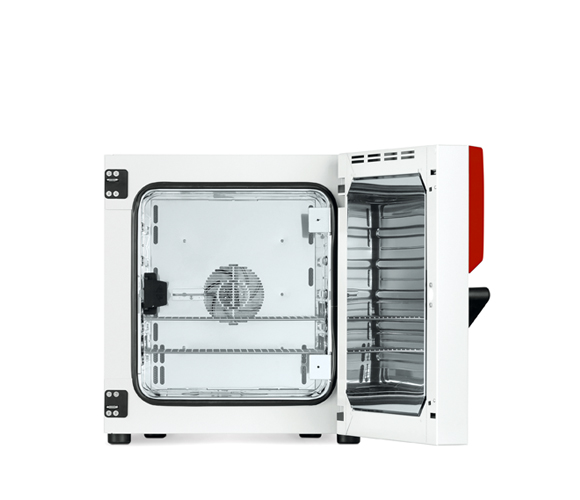

Binder BF 56 Laboratory Incubator – Precision and Performance with Forced Convection
The Binder BF 56 laboratory incubator from the Avantgarde.Line series is designed for efficient, reliable incubation in research, microbiology, and quality control labs. Equipped with forced convection and Binder’s advanced APT.line™ preheating technology, the BF 56 ensures fast temperature recovery and excellent uniformity—ideal for applications involving full loads and larger batch throughputs.
With a temperature range of +7–8 °C above ambient up to 100 °C, the BF 56 offers precise, stable conditions for the cultivation of microorganisms, cell cultures, and other sensitive samples. Its compact 56-liter chamber makes it an excellent choice for laboratories needing high-performance incubation in a space-saving format.
Built with German engineering quality, this model includes practical features such as an LCD controller, tempered safety glass inner door, and electromechanical exhaust air flap control. The BF 56 also features Binder’s Class 3.1 safety system (DIN 12880) and a USB port for data logging—supporting both operational efficiency and compliance in regulated environments.
Key Features:
-
Temperature range: +7–8 °C above ambient to +100 °C
-
Forced convection for fast heat-up and recovery times
-
APT.line™ technology for outstanding temperature accuracy
-
LCD controller with intuitive navigation
-
Tempered safety glass inner door for sample visibility
-
Electromechanical exhaust air flap control
-
56-liter stainless steel chamber with 2 chrome-plated racks
-
Stackable design for space-saving in multi-unit setups
-
USB interface for data recording and compliance
-
Class 3.1 safety device (DIN 12880) with visual alarm
Whether you’re working with culture plates, flasks, or other lab vessels, the Binder BF 56 laboratory incubator delivers premium performance, safety, and reproducibility in a compact, user-friendly design—ideal for modern laboratories in the BeNeLux region.
Specifications
Warranty: 2 years
Lead time: 1-2 weeks
| Designation | BF056-230V |
| Article Number | 9010-0313 |
| Performance Data Temperature | |
| Temperature range | +7 °C above ambient temperature to 100 °C |
| Temperature uniformity at 37°C | 0.2 ± K |
| Temperature uniformity at 100°C | 1.0 ± K |
| Temperature fluctuation at 37°C | 0.1 ± K |
| Temperature fluctuation at 100°C | 0.2 ± K |
| Heating up time to 37°C | 6 min |
| Heating up time to 100°C | 35 min |
| Recovery time after door was opened for 30 s at 37°C | 3 min |
| Measures | |
| Interior volume | 59 L |
| Net weight of the unit (empty) | 39 kg |
| Load per rack | 30 kg |
| Permitted load | 70 kg |
| Doors | |
| Unit doors | 1 |
| Inner doors | 1 |
| Internal Dimensions | |
| Interior width | 400 mm |
| Interior height | 440 mm |
| Interior depth | 340 mm |
| Wall clearance | |
| Wall clearance back | 160 mm |
| Wall clearance sidewise | 100 mm |
| Housing dimensions not incl. fittings and connections | |
| Width net | 560 mm |
| Height net | 625 mm |
| Depth net | 565 mm |
| Electrical data | |
| Housing protection acc. to EN 60529 | IP 20 |
| Rated Voltage | 230 V |
| Power frequency | 50/60 Hz |
| Nominal power | 0,4 kW |
| Nominal current | / |
| Unit fuse | 6,3 A |
| Phase (Nominal voltage) | 1~ |
| Environment-specific data | |
| Sound-pressure level | 43 dB(A) |
| Energy consumption at 37°C | 55 Wh/h |
| Energy consumption at 100°C | 190 Wh/h |
| Fixtures | |
| Number of shelves (std./max.) | 2/4 |
- Access port with silicone plug: For introducing external measuring instruments. Large selection of different diameters and positions (left, right, or top)
- Interior socket: Waterproof, switched flush-mounting box (CA3GD) for nominal voltage in unit interior, with cover
and corresponding plug (nominal voltage; max. 500 W; max. 90 °C; protection class IP67) - Door lock: Lockable door handle prevents unauthorized access.
- Shelf racks: Perforated shelves or shelf racks, chrome-plated or made from stainless steel.
- Data Logger Kit T: Independent temperature data logging. The tailored product solution contains helpful accessories: From the magnetic mounting of the data logger to the BINDER unit and securing sensor cable for accurate readings.
- Services: You can access our installation, maintenance, calibration, validation, or warranty services by taking
out a Maintenance Service Agreement or by simply getting in touch when you need us.
More information is available in the accessories and services chapter. - BINDER INDIVIDUAL: Using a BINDER series production product as a basis, we develop individual solutions as a single unit or in small batches. All products are tested, certified, and supplied with a full functional guarantee and warranty. More information is available in the accessories and services chapter.
