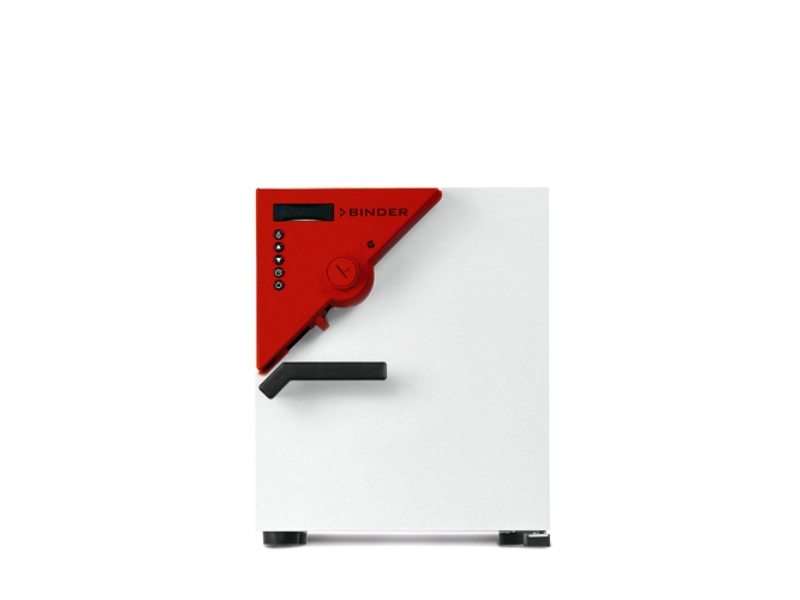

Binder BD 23 laboratory incubator
€1.946,00 excl. VAT
- Volume: 20 liter
- Temperature range: +5°C above ambient temperature to +100°C
- APT.line™ preheating chamber technology
- Natural convection
- Adjustable exhaust air flap
- Controller with timer functions
- Inner door made of tempered safety glass
- 2 chrome-plated racks
- Stackable
- Class 3.1 independent temperature safety device (DIN 12880) with visual temperature alarm
- Computer interface: RS 422
Description
Binder BD 23 Incubator – Compact Precision for Reliable Laboratory Incubation
The Binder BD 23 laboratory incubator is designed for gentle incubation and reliable temperature control in research, microbiology, and quality assurance laboratories. With a 20-liter chamber and compact footprint, it is ideal for applications requiring stable, low-temperature conditions for the cultivation of microorganisms, bacteria, or cell cultures.
This incubator uses natural convection to ensure homogeneous temperature distribution without airflow that could disturb sensitive samples. The temperature range from +5°C above ambient to 100°C, paired with Binder’s high-precision electronic controller, guarantees consistent and reproducible results, even over long incubation periods.
The BD 23 features a stainless steel interior, intuitive control panel, and robust construction for long-term, maintenance-free operation in demanding lab environments.
Key Features:
-
Temperature range: +5 °C above ambient to 100 °C
-
Natural convection for gentle, uniform heat distribution
-
20-liter chamber with stainless steel interior
-
High-precision temperature control for reproducibility
-
Compact design – ideal for small lab spaces
-
Class 2 safety concept for reliable long-term use
-
Easy-to-clean surfaces and ergonomic operation
Whether you’re incubating petri dishes, culture plates, or small sample vessels, the Binder BD 23 offers precise, energy-efficient incubation performance for laboratories that value reliability and consistency.
Specifications
Warranty: 2 years
Lead time: 1-2 weeks
| Designation | BD023-230V |
| Article Number | 9010-0187 |
| Performance Data Temperature | |
| Temperature range | +5 °C above ambient temperature to 100 °C |
| Temperature uniformity at 37°C | 0.5 ± K |
| Temperature fluctuation at 37°C | 0.2 ± K |
| Temperature fluctuation at 100°C | |
| Heating up time to 37°C | 59 min |
| Heating up time to 100°C | |
| Recovery time after door was opened for 30 s at 37°C | 20 min |
| Measures | |
| Interior volume | 20 L |
| Net weight of the unit (empty) | 27 kg |
| Load per rack | 12 kg |
| Permitted load | 25 kg |
| Doors | |
| Unit doors | 1 |
| Internal Dimensions | |
| Interior width | 222 mm |
| Interior height | 330 mm |
| Interior depth | 277 mm |
| Wall clearance | |
| Wall clearance back | 100 mm |
| Wall clearance sidewise | 50 mm |
| Housing dimensions not incl. fittings and connections | |
| Width net | 435 mm |
| Height net | 495 mm |
| Depth net | 520 mm |
| Electrical data | |
| Housing protection acc. to EN 60529 | IP 20 |
| Rated Voltage | 230 V |
| Power frequency | 50/60 Hz |
| Nominal power | 0,2 kW |
| Nominal current | 0,9 A |
| Unit fuse | 12,5 A |
| Phase (Nominal voltage) | 1~ |
| Environment-specific data | |
| Sound-pressure level | / |
| Energy consumption at 37°C | 11 Wh/h |
| Energy consumption at 100°C | NA |
| Fixtures | |
| Number of shelves (std./max.) | 2/4 |
- Access port with silicone plug: For introducing external measuring instruments. Large selection of different diameters and positions (left, right, or top)
- Interior socket: Waterproof, switched flush-mounting box (CA3GD) for nominal voltage in unit interior, with cover
and corresponding plug (nominal voltage; max. 500 W; max. 90 °C; protection class IP67) - Door lock: Lockable door handle prevents unauthorized access.
- Shelf racks: Perforated shelves or shelf racks, chrome-plated or made from stainless steel.
- Data Logger Kit T: Independent temperature data logging. The tailored product solution contains helpful accessories: From the magnetic mounting of the data logger to the BINDER unit and securing sensor cable for accurate readings.
- Services: You can access our installation, maintenance, calibration, validation, or warranty services by taking
out a Maintenance Service Agreement or by simply getting in touch when you need us.
More information is available in the accessories and services chapter. - BINDER INDIVIDUAL: Using a BINDER series production product as a basis, we develop individual solutions as a single unit or in small batches. All products are tested, certified, and supplied with a full functional guarantee and warranty. More information is available in the accessories and services chapter.
