Trionyx 3035E Type 30 Flammable Storage Cabinet – EN 14470-1
€2.575,00 excl. VAT
The Trionyx 3035E is a large-capacity Type 30 flammable storage cabinet developed for laboratories and industrial facilities handling significant volumes of solvents.
Certified to EN 14470-1 and FM 6050, it provides 30-minute fire resistance together with self-closing doors and integrated spill containment.
With three standard shelves and rear ventilation ports, the cabinet supports safe daily chemical handling in regulated environments.

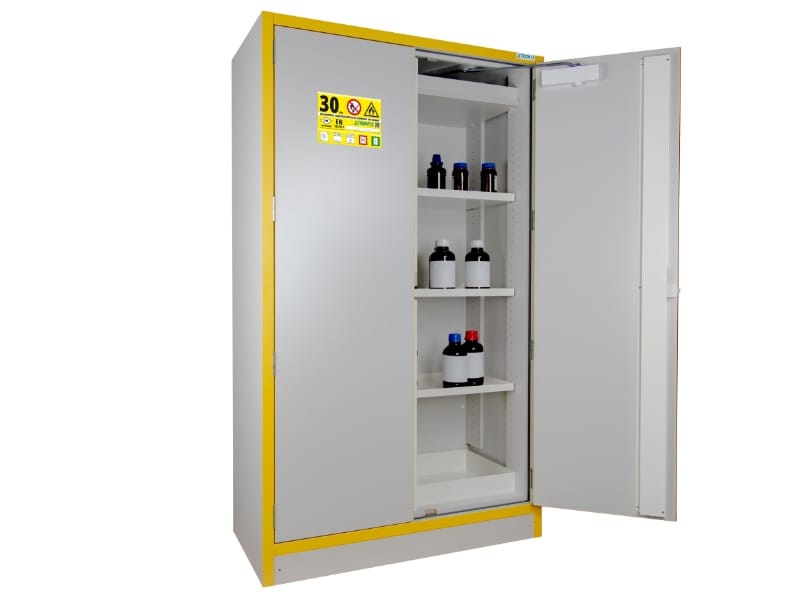

Trionyx 3035E Type 30 Flammable Storage Cabinet
The Trionyx 3035E is an EN 14470-1 certified safety cabinet designed for the compliant storage of flammable liquids in pharmaceutical, research and industrial laboratories.
Offering a generous internal capacity of 250 litres, the cabinet allows safe segregation of solvent containers while keeping them immediately accessible at the point of use.
Its 30-minute fire-resistant construction is combined with self-closing swing doors fitted with thermo-expanding seals, a built-in retention sump, and rear ventilation connections for ducting to extraction or filtration systems.
Manufactured in France and tested according to FM 6050, the 3035E provides a robust, regulation-ready solution for demanding safety-critical environments.
Technical Specifications – Trionyx 3035E
| Specification | Value |
|---|---|
| Cabinet type | Flammable storage cabinet |
| Fire rating | Type 30 – 30 minutes |
| Certifications | EN 14470-1, FM 6050 |
| External dimensions (HxWxD) | 1980 × 1115 × 550 mm |
| Internal dimensions (HxWxD) | 1580 × 1050 × 420 mm |
| Storage capacity | 250 L |
| Number of doors | 2 |
| Door type | Self-closing swing doors |
| Standard shelves | 3 |
| Containment sump | 1 |
| Ventilation connections | Rear inlet and outlet |
| Opening diameter | 100 mm |
| Cabinet material | Melamine wood structure |
| Colour | Light grey RAL 7035 |
| Weight | 210 kg |
| Load capacity | 50 kg |
| HS code | 94036000 |
Available Options for Trionyx 3035E
• Additional containment sump (Ref. B235)
• Perforated cover plate (Ref. C235)
• Retention shelf (Ref. E35)
• PVC containment sump (Ref. SB148)
• PVC protection shelf (Ref. SE48)
• Sliding drawer (Ref. T235)
• Ventilation box for ducted connection (CDV-A)
• Connecting kit (KRC)
