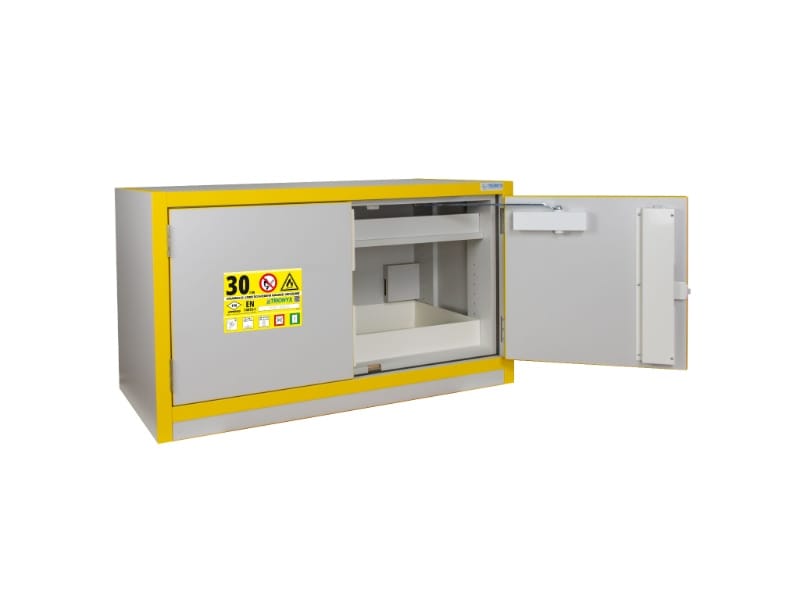

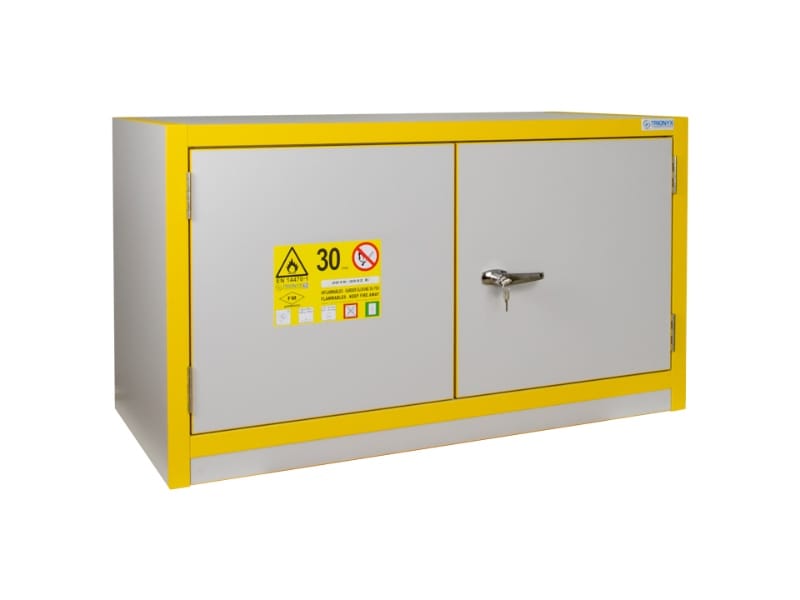

Trionyx 3032E Type 30 Underbench Flammable Storage Cabinet – EN 14470-1
€2.045,00 excl. VAT
The Trionyx 3032E is a compact Type 30 underbench flammable storage cabinet designed for laboratories requiring safe solvent storage close to the workplace.
Certified to EN 14470-1 and FM 6050, it provides 30-minute fire resistance while remaining easily installable beneath workbenches.
With dual self-closing doors, integrated spill containment and rear ventilation connections, the cabinet supports safe daily handling of flammable liquids in regulated environments.
Trionyx 3032E Type 30 Underbench Flammable Storage Cabinet
The Trionyx 3032E is an EN 14470-1 certified underbench safety cabinet developed for the secure storage of flammable liquids in laboratory and industrial environments.
Its compact footprint allows installation below work surfaces while still providing 60 litres of internal storage protected by a 30-minute fire-resistant construction.
The cabinet features self-closing swing doors fitted with thermo-expanding seals, a liquid retention sump in the base compartment and rear ventilation ports for connection to external extraction or filtration systems.
Manufactured in France and tested to FM 6050, the 3032E is an ideal solution for research laboratories, pharmaceutical facilities and production areas where solvents must be kept immediately accessible yet compliant with fire-safety regulations.
Technical Specifications – Trionyx 3032E
| Specification | Value |
|---|---|
| Cabinet type | Underbench flammable storage cabinet |
| Fire rating | Type 30 – 30 minutes |
| Certifications | EN 14470-1, FM 6050 |
| External dimensions (HxWxD) | 635 × 1115 × 630 mm |
| Internal dimensions (HxWxD) | 365 × 1050 × 420 mm |
| Storage capacity | 60 L |
| Number of doors | 2 |
| Door type | Self-closing swing doors |
| Standard shelves | 0 |
| Containment sump | 1 |
| Ventilation connections | Rear inlet and outlet |
| Opening diameter | 100 mm |
| Cabinet material | Melamine wood structure |
| Colour | Light grey RAL 7035 |
| Weight | 108 kg |
| Load capacity | 50 kg |
| HS code | 94036000 |
Available Options for Trionyx 3032E
• Additional containment sump (Types 30 / 60 / 90)
• Perforated cover plate for two-door cabinets
• Retention shelf
• PVC containment sump
• PVC protection shelf
• Ventilation box for duct connection (CDV-A)
• Connecting kit (KRC)
• Vertical air-recycling box (H40+, without filter)
