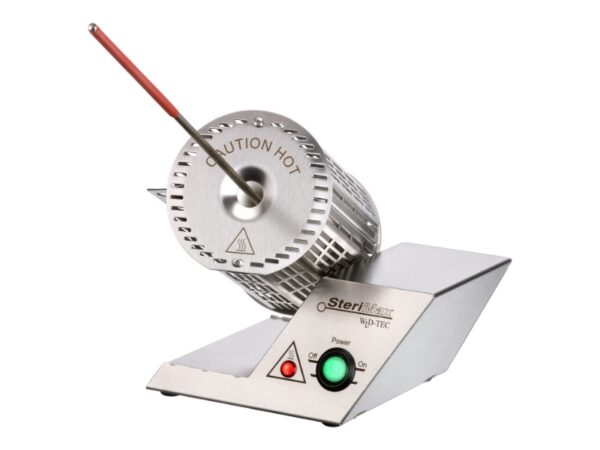

SteriMax Short 118mm infrared loop sterilizer
€624,00 excl. VAT
- Adjustable angle
- Operation: on-of
- Timer display: no
- Adjustable sterilization time: no
- Dimensions: 175 x 129 x 139 mm
Description
It is ideal for laboratories and safety cabinets where the use of gases and open flames is not permitted.
SteriMax
with 7 angular adjustments
residual heat display
tray for 3 instruments
– Stainless steel design
– Long-lasting double tube system
– Sterilization period 5-7 seconds
– Self-locking angular adjustment
– Two sizes available
Robust
The unique double tube system, which is made of robust quartz glass and wear-resistant ceramic, reaches its optimal temperature of 900°C (1650°F) after only a few minutes. To sterilize the inoculation loop, simply insert it into the ceramic annealing tube. After 5-7 seconds, the inoculation loop is sterilized*. A back side spray protector is integrated for more safety when handling with pathogenic material. Even clogging is not an issue. The ceramic annealing tube can be removed easily for in-depth cleaning. A 100% stainless steel design makes the SteriMax resistant to even the most extreme laboratory conditions.
Flexible and safe
The sterilization tube can lock itself into place, using the specially designed angular adjusting device. The low and stable housing facilitates ergonomic operation; the unique design protects the working surface from contamination. Exceptional passive safety feature: After prolonged use, the residual heat display signals a hot surface of the sterilization tube in order to protect the user from burns.
*tested with inoculation loops, WLD-TEC Art.-No. 6.000.373
Specifications
Warranty: 2 years
Lead time: 1-2 weeks
The range including tools for a simple start-up of the SteriMax.
- SteriMax
Diameter Ø 15 mm, length 118 mm
with 7 angular adjustments
Residual heat display
tray for 3 instruments
Instruction manual
2-year warranty (except parts to wear and tear) - Power supply
- 1 Inoculation loop holder
- 1 Inoculation loop Ø 3 mm
- Screwdriver w/o illustration
| Double Tube System: | length 118 mm Ceramic annealing tube Ø 15 mm Quartz glass heating element Ø 21 mm |
| Angular adjustments: | 7 |
| Safety feature: | Residual heat dispaly |
| Temperatures Sterilization temperature: Sterilization time: Heating-up time: Heat transfer:
|
900 °C – 950 °C (1650 °F – 1742 °F) 5-7 seconds* 700 °C / 11 minutes 800 °C / 14 minutes 900 °C / 24 minutes a stainless steel surface, located above, warms up at motionless air and at an ambient temperature of 20°C Distance: 20 cm: 65°C 30 cm: 34°C 40 cm: 28°C |
| Electrical Power consumption: Power supply: |
160W 230 V mains voltage: 220 – 240 V 50/60 Hz 120 V mains voltage: 112 – 128 V 50/60 Hz 100 V mains voltage: 95 – 105 V 50/60 Hz |
| Mechanical Casing: Measurements (w x h x d): Weight: |
stainless steel 175 x 129 x 139 mm 960 g |
| Licenses CE: EU guidelines: |
EN 61326-1, EN61010-1, EN61010-2-010 2014/30/EU, 2014/35/EU, 2011/65/EU |
| *tested with inoculation loops, WLD-TEC Art.-No. 6.000.373 |
