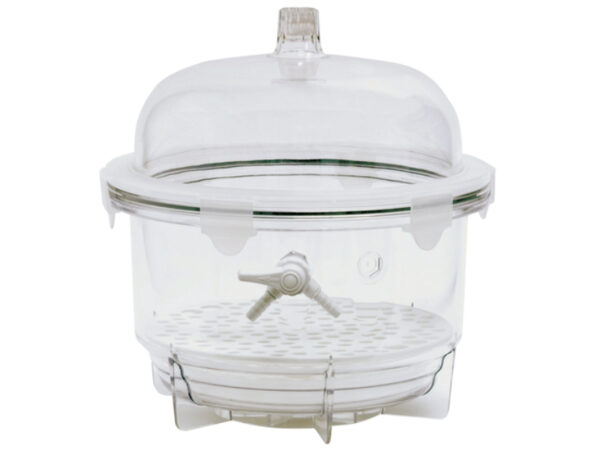

Jeiotech VDR-25 Round Vacuum Desiccator
€232,00 excl. VAT
- Type: Round vacuum desiccator
- Vacuum level: Up to 1 Torr for 72 hours
- Internal volume: 10 L
- Body material: Polycarbonate (transparent)
- Highlights: UV-blocking option, optional vacuum gauge
Jeiotech VDR-25 Round Vacuum Desiccator – Secure Moisture Protection for Sensitive Laboratory Samples
The Jeiotech VDR-25 vacuum desiccator offers reliable vacuum storage to protect moisture-sensitive materials in laboratories, ensuring samples remain dry and uncontaminated during storage or handling. It’s ideal for safeguarding hygroscopic chemicals, powders, electronic components, and specimens vulnerable to humidity and oxidation.
Constructed from high-quality polycarbonate (PC), the VDR-25 boasts excellent transparency and impact resistance, enabling visual inspection of contents without opening the chamber. Its robust molded body minimizes vacuum leaks, while a maximum permissible vacuum of 1.33 × 10⁻⁴ MPa (1 Torr) can be maintained for up to 72 hours, ensuring prolonged moisture protection.
The VDR-25 offers a larger 10 L internal volume, suitable for greater sample quantities or larger items. It comes with a dedicated desiccant tray and supports perforated shelves for flexible storage arrangements. UV-blocking versions (U-type) are available for light-sensitive samples, and G-type models include a precision analog vacuum gauge for real-time monitoring. A secure safety locker prevents accidental opening under atmospheric pressure, enhancing safe handling.
Compact yet spacious, the VDR-25 vacuum desiccator provides dependable protection and versatile storage for laboratories demanding moisture-free environments.
Key Features Summary:
-
Round vacuum desiccator for lab use
-
Holds vacuum up to 1.33 × 10⁻⁴ MPa (1 Torr) for 72 hours
-
Durable polycarbonate body reduces vacuum loss
-
Clear visibility for easy sample inspection
-
Optional UV-blocking model for light-sensitive materials
-
10 L internal volume
-
Includes desiccant tray
-
Optional analog vacuum gauge (G-type)
-
Safety locker for secure closure
-
Lightweight, durable design
Warranty: 2 years
Lead time: if on stock: 2 weeks. If not on stock 10 weeks
| Specification | Details |
|---|---|
| Model | VDR-25 |
| Type | Round vacuum desiccator |
| Internal Volume | 10 L (0.4 cu. ft.) |
| Max. Permissible Vacuum | 1.33 × 10⁻⁴ MPa (1 Torr) |
| Vacuum Holding Time | Up to 72 hours |
| Vacuum Gauge Range (Analog) | 0 to -0.1 MPa (G-type only) |
| Body Material | Polycarbonate (PC) |
| UV Blocking Option | Yes (U-type models) |
| Internal Dimensions (Ø × H) | 228 × 241 mm (9.0 × 9.5 in.) |
| Overall Dimensions (Ø × H) | 297 × 334 mm (11.7 × 13.1 in.) without gauge297 × 409 mm (11.7 × 16.1 in.) with gauge |
| Desiccant Tray Dimensions | 201 × 31 mm |
| Perforated Shelf Diameter | 238 mm (9.4 in.) |
| Max. Load per Shelf | 15 kg (33.1 lbs) |
| Nozzle Diameter | 9.5 mm (0.37 in.) |
| Net Weight | 2.5 kg (2.7 kg with gauge) / 5.5–5.9 lbs |
| Safety Locker | Yes |
| RoHS Compliant | Yes |
| Warranty | 2 years |
Optional Accessories & Configurations
-
Vacuum Gauge (G-type) – analog monitoring of internal vacuum
-
UV Protection (U-type) – shields light-sensitive contents
-
Perforated Shelves – increases storage flexibility
-
3-way Valve – simplifies vacuum formation and release
-
Vacuum Seal Replacement Kit – ensures long-term vacuum performance
-
Silica Gel Desiccant – effective moisture removal
