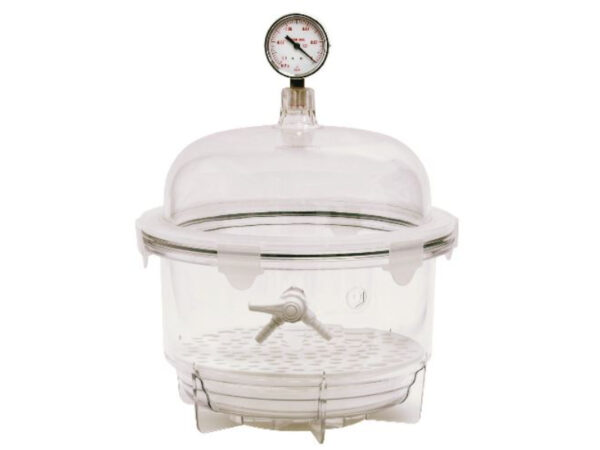

Jeiotech VDR-20 Round Vacuum Desiccator
€188,00 excl. VAT
- Type: Round vacuum desiccator
- Vacuum level: Up to 1 Torr for 72 hours
- Internal volume: 6 L
- Body material: Polycarbonate (transparent)
- Highlights: UV-blocking option, optional vacuum gauge
Jeiotech VDR-20 Round Vacuum Desiccator – Reliable Moisture Protection and Safe Vacuum Storage for Laboratory Samples
The Jeiotech VDR-20 vacuum desiccator offers secure and efficient vacuum storage to protect sensitive samples from moisture and contamination. Designed for laboratory applications requiring dry environments, it’s perfect for preserving hygroscopic substances, powders, electronic components, and materials sensitive to oxidation or humidity.
Manufactured from robust polycarbonate (PC), the VDR-20 features a solid, seamless molded body that ensures exceptional durability and minimizes vacuum leaks, even under repeated use. The maximum permissible vacuum level of 1.33 × 10⁻⁴ MPa (1 Torr) can be maintained for up to 72 hours, ensuring long-lasting protection for valuable samples. The transparent chamber allows clear visual inspection without opening the unit, while the optional UV-blocking models (U-type) protect light-sensitive materials.
With a 6 L internal volume, the VDR-20 is compact yet functional, offering ample space for routine laboratory storage needs. The desiccator includes a dedicated PP desiccant tray and supports perforated shelves to optimize space utilization and air flow around stored items. A precision analog vacuum gauge is available on G-type models for real-time monitoring of internal vacuum levels. A safety locker ensures secure closure at normal pressure for safe handling and transport.
For laboratories demanding reliable vacuum storage in a compact footprint, the VDR-20 vacuum desiccator offers a durable and cost-effective solution.
Key Features Summary:
-
Round vacuum desiccator for laboratory use
-
Maintains vacuum up to 1.33 × 10⁻⁴ MPa (1 Torr) for 72 hours
-
Durable polycarbonate body minimizes vacuum leaks
-
Transparent chamber for clear sample visibility
-
UV-blocking model available for light-sensitive materials
-
6 L internal volume
-
Includes desiccant tray
-
Optional vacuum gauge for precise monitoring
-
Safety locker for secure closure
-
Compact, lightweight design
Warranty: 2 years
Lead time: if on stock: 2 weeks. If not on stock 10 weeks
| Specification | Details |
|---|---|
| Model | VDR-20 |
| Type | Round vacuum desiccator |
| Internal Volume | 6 L (0.2 cu. ft.) |
| Max. Permissible Vacuum | 1.33 × 10⁻⁴ MPa (1 Torr) |
| Vacuum Holding Time | Up to 72 hours |
| Vacuum Gauge Range (Analog) | 0 to -0.1 MPa (G-type only) |
| Body Material | Polycarbonate (PC) |
| UV Blocking Option | Yes (U-type models) |
| Internal Dimensions (Ø × H) | 183 × 173 mm (7.2 × 6.8 in.) |
| Overall Dimensions (Ø × H) | 252 × 279 mm (9.5 × 11 in.) without gauge252 × 354 mm (9.5 × 13.9 in.) with gauge |
| Desiccant Tray Dimensions | 159 × 31 mm |
| Perforated Shelf Diameter | 192 mm (7.6 in.) |
| Max. Load per Shelf | 15 kg (33.1 lbs) |
| Nozzle Diameter | 9.5 mm (0.37 in.) |
| Net Weight | 1.5 kg (1.7 kg with gauge) / 3.3–3.7 lbs |
| Safety Locker | Yes |
| RoHS Compliant | Yes |
| Warranty | 2 years |
Optional Accessories & Configurations
-
Vacuum Gauge (G-type model) – analog gauge for vacuum monitoring
-
UV Protection (U-type models) – for light-sensitive samples
-
Perforated Shelves – for flexible storage and air circulation
-
3-way Valve – simplifies vacuum formation and gas exchange
-
Vacuum Seal Replacement Kit – maintains long-term vacuum integrity
-
Silica Gel Desiccant (various capacities) – moisture removal
