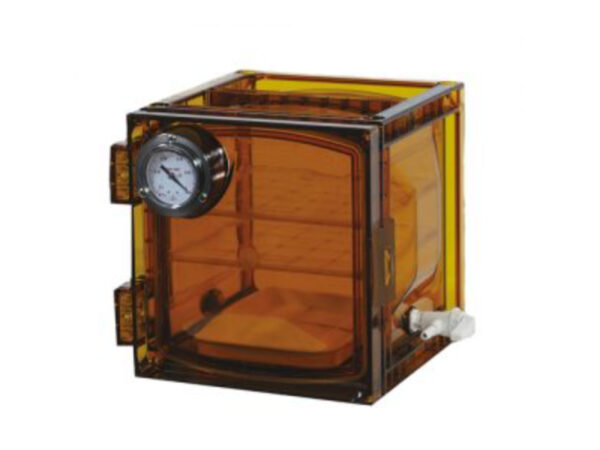

Jeiotech VDC-11U Square UV Blocking Vacuum Desiccator
€830,00 excl. VAT
- Type: Square UV vacuum desiccator
- Vacuum level: Up to 1 Torr for 72 hours
- Internal volume: 11 L
- Body material: UV-blocking PMMA
- Highlights: UV protection, compact size
Jeiotech VDC-11U Square UV Vacuum Desiccator – Compact, UV-Protected Storage for Sensitive Laboratory Samples
The Jeiotech VDC-11U square vacuum desiccator offers reliable vacuum storage combined with UV protection, making it ideal for safeguarding sensitive laboratory samples that are vulnerable to both moisture and light exposure. Perfect for preserving light-sensitive chemicals, biological samples, pharmaceuticals, and delicate electronics, it provides a controlled environment that shields contents from humidity, dust, and harmful UV rays.
Constructed from durable, UV-blocking PMMA (polymethyl methacrylate), the VDC-11U ensures excellent impact resistance while blocking out damaging light wavelengths, reducing the risk of photo-degradation. Its seamless, leak-resistant design sustains a maximum vacuum of 1.33 × 10⁻⁴ MPa (1 Torr) for up to 72 hours, delivering long-lasting protection. Unlike the standard VDC-11, the U-type version features a tinted body that effectively limits UV transmission while still allowing clear visibility of stored items.
With an 11 L internal volume, the VDC-11U is perfectly suited for laboratories with limited space and specialized storage needs. Additional features include compatibility with perforated shelves for efficient organization and a robust safety locker to prevent accidental lid opening under atmospheric pressure.
For laboratories that require compact vacuum storage with enhanced UV protection, the Jeiotech VDC-11U offers a perfect balance of safety, durability, and visibility.
Key Features Summary:
-
Square vacuum desiccator with UV protection
-
Maintains vacuum up to 1.33 × 10⁻⁴ MPa (1 Torr) for 72 hours
-
UV-blocking PMMA construction protects light-sensitive samples
-
11 L internal capacity
-
Safety locker prevents accidental opening
-
Clear yet UV-shielded visibility
Warranty: 2 years
Lead time: if on stock: 2 weeks. If not on stock 10 weeks
| Specification | Details |
|---|---|
| Model | VDC-11U |
| Type | Square vacuum desiccator with UV protection |
| Internal Volume | 11 L (0.4 cu. ft.) |
| Max. Permissible Vacuum | 1.33 × 10⁻⁴ MPa (1 Torr) |
| Vacuum Holding Time | Up to 72 hours |
| Body Material | UV-blocking PMMA (Polymethyl methacrylate) |
| Internal Dimensions (W × D × H) | 266 × 346 × 150 mm (10.5 × 13.6 × 5.9 in.) |
| External Dimensions (W × D × H) | 367 × 397 × 185 mm (14.4 × 15.6 × 7.3 in.) |
| Perforated Shelf Dimensions | 218 × 268 mm (8.6 × 10.6 in.) |
| Desiccant Tray Dimensions | 218 × 268 × 26 mm |
| Nozzle Diameter | 9.5 mm (0.37 in.) |
| Max. Load per Shelf | 10 kg (22.0 lbs) |
| Quantity of Shelves (Standard/Max) | 1 / 2 |
| Net Weight | 4.1 kg (9.0 lbs) |
| Safety Locker | Yes |
| RoHS Compliant | Yes |
| Warranty | 2 years |
Optional Accessories & Configurations
-
Perforated Shelves – customizable internal layout
-
3-way Valve – simplifies vacuum creation and venting
-
Vacuum Seal Replacement Kit – maintains long-term vacuum integrity
-
Silica Gel Desiccant – absorbs residual moisture
