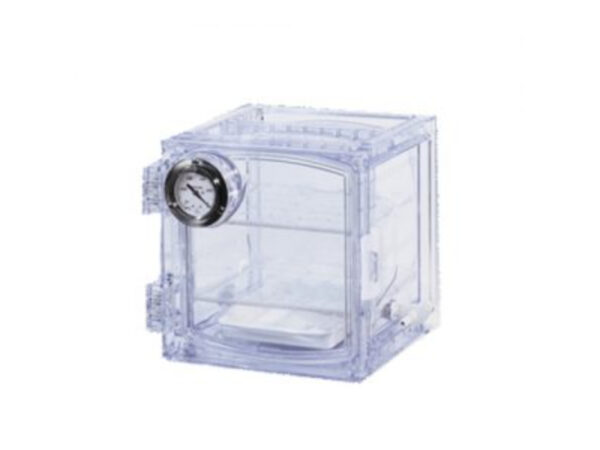

Jeiotech VDC-11 Square Vacuum Desiccator
€780,00 excl. VAT
- Type: Square vacuum desiccator with gauge
- Vacuum level: Up to 1 Torr for 72 hours
- Internal volume: 11 L
- Body material: Clear PMMA
- Highlights: Analog gauge, safety locker
Jeiotech VDC-11 Square Vacuum Desiccator – Compact Vacuum Storage for Precise Laboratory Sample Protection
The Jeiotech VDC-11 square vacuum desiccator provides dependable, compact vacuum storage for laboratories needing reliable protection of moisture-sensitive materials. Ideal for safeguarding small volumes of hygroscopic chemicals, electronics, pharmaceuticals, and delicate samples, it offers a secure, controlled environment that prevents degradation due to humidity or contaminants.
Constructed from clear, robust PMMA (polymethyl methacrylate), the VDC-11 ensures high impact resistance and excellent transparency, allowing users to visually inspect stored items without disturbing the vacuum seal. Its seamless, leak-resistant body maintains a maximum vacuum of 1.33 × 10⁻⁴ MPa (1 Torr) for up to 72 hours, delivering trustworthy long-term storage. The integrated analog vacuum gauge allows real-time monitoring of internal pressure levels for added safety and precision.
With an internal volume of 11 L, the VDC-11 is ideal for laboratories with limited space but high standards for sample protection. Additional features include a safety locker to prevent accidental lid opening under atmospheric conditions and compatibility with perforated shelves for customizable internal organization.
For laboratories requiring compact yet robust vacuum storage, the Jeiotech VDC-11 offers a perfect blend of visibility, reliability, and space efficiency.
Key Features Summary:
-
Square vacuum desiccator for compact lab storage
-
Maintains vacuum up to 1.33 × 10⁻⁴ MPa (1 Torr) for 72 hours
-
Durable, clear PMMA construction
-
Analog vacuum gauge for monitoring
-
11 L internal capacity
-
Safety locker prevents accidental opening
-
Clear visibility for easy inspection
Warranty: 2 years
Lead time: if on stock: 2 weeks. If not on stock 10 weeks
| Specification | Details |
|---|---|
| Model | VDC-11 |
| Type | Square vacuum desiccator with gauge |
| Internal Volume | 11 L (0.4 cu. ft.) |
| Max. Permissible Vacuum | 1.33 × 10⁻⁴ MPa (1 Torr) |
| Vacuum Holding Time | Up to 72 hours |
| Vacuum Gauge Range (Analog) | 0 to -0.1 MPa |
| Body Material | PMMA (Polymethyl methacrylate) |
| Internal Dimensions (W × D × H) | 266 × 346 × 150 mm (10.5 × 13.6 × 5.9 in.) |
| External Dimensions (W × D × H) | 367 × 397 × 185 mm (14.4 × 15.6 × 7.3 in.) |
| Perforated Shelf Dimensions | 218 × 268 mm (8.6 × 10.6 in.) |
| Desiccant Tray Dimensions | 218 × 268 × 26 mm |
| Nozzle Diameter | 9.5 mm (0.37 in.) |
| Max. Load per Shelf | 10 kg (22.0 lbs) |
| Quantity of Shelves (Standard/Max) | 1 / 2 |
| Net Weight | 4.1 kg (9.0 lbs) |
| Safety Locker | Yes |
| RoHS Compliant | Yes |
| Warranty | 2 years |
Optional Accessories & Configurations
-
Perforated Shelves – flexible internal layout
-
3-way Valve – simplifies vacuum formation and venting
-
Vacuum Seal Replacement Kit – ensures long-term vacuum integrity
-
Silica Gel Desiccant – moisture absorption for optimal dryness
