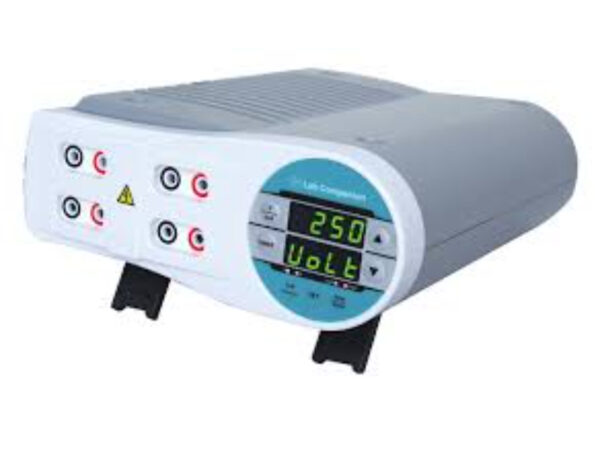

Jeiotech EPS-300 Gel Electrophoresis Power Supply
€956,00 excl. VAT
- Type: Electrophoresis power supply
- Output range: 5–250 V, 10–3000 mA, max. 300 W
- Connections: Up to 4 devices simultaneously
- Features: Timer, pause/resume, safety protections
- Highlights: Stackable design, mobile monitoring optional
Jeiotech EPS-300 Electrophoresis Power Supply – Precision Control for Gel Electrophoresis and Blotting Applications
The Jeiotech EPS-300 is a versatile, multi-purpose power supply designed to support horizontal agarose gels, vertical polyacrylamide gels, and various blotting applications. Ideal for molecular biology and biochemistry labs, it offers precision and flexibility for a broad range of electrophoresis experiments.
Equipped with constant voltage and constant current modes, the EPS-300 provides accurate and stable outputs for consistent experimental results. Its four pairs of output terminals allow simultaneous connection of up to four electrophoresis units, maximizing laboratory efficiency.
A user-friendly 7-segment LED display ensures clear readouts of voltage, current, and time settings. The microprocessor-based control system enables accurate adjustments, while safety features like rapid resistance change detection and protections against over-current, over-voltage, and over-temperature keep your lab environment safe.

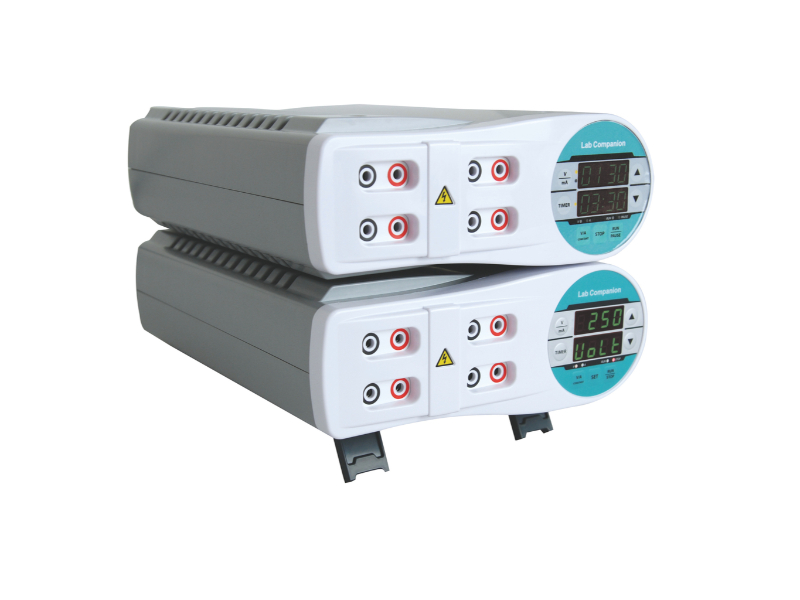

Compact and stackable, the EPS-300 saves valuable bench space and can integrate with Jeiotech’s LC GreenBox for real-time mobile monitoring and data management.
Key Features Summary:
-
Compatible with horizontal agarose and vertical PAGE gels
-
Constant voltage and constant current operation modes
-
Simultaneous connection for up to four electrophoresis devices
-
Microprocessor-controlled precision output
-
Timer range from 1 minute to 99 hours 59 minutes
-
Pause/resume functionality
-
Over-current, over-voltage, and over-temperature protection
-
Stackable design saves lab space
-
Optional mobile monitoring via LC GreenBox
Warranty: 2 years
Lead time: if on stock: 2 weeks. If not on stock 10 weeks
| Specification | Details |
|---|---|
| Model | EPS-300 |
| Output Voltage Range | 5 – 250 V, adjustable in 1 V increments |
| Output Current Range | 10 mA – 3000 mA, adjustable in 10 mA increments |
| Maximum Power Output | 300 W |
| Type of Output | Constant voltage or constant current mode |
| Output Terminals | 4 pairs of recessed banana jacks (parallel) |
| Timer Range | 1 min – 99 hr 59 min |
| Pause/Resume Function | Yes |
| Display | 7-segment, 4-digit LED, 2-line |
| Operating Conditions | 0 – 40 °C, 0 – 80% RH |
| Dimensions (W × D × H) | 240 × 310 × 100 mm (9.45 × 12.2 × 3.94 in.) |
| Weight | 2.5 kg (5.51 lbs) |
| Electrical Requirements | 100–240 VAC, 50/60 Hz |
| Current Consumption | 3.6 A |
| Safety Certifications | CE certified |
| Cat. No. | AAAJ6541 |
| Optional Accessories | LC GreenBox (mobile monitoring) |
Optional Accessories & Configurations
-
LC GreenBox – mobile monitoring and control of electrophoresis operations via smartphone or tablet
-
Compatible Electrophoresis Units – EP-05, EP-10, EP-18 systems from Jeiotech
