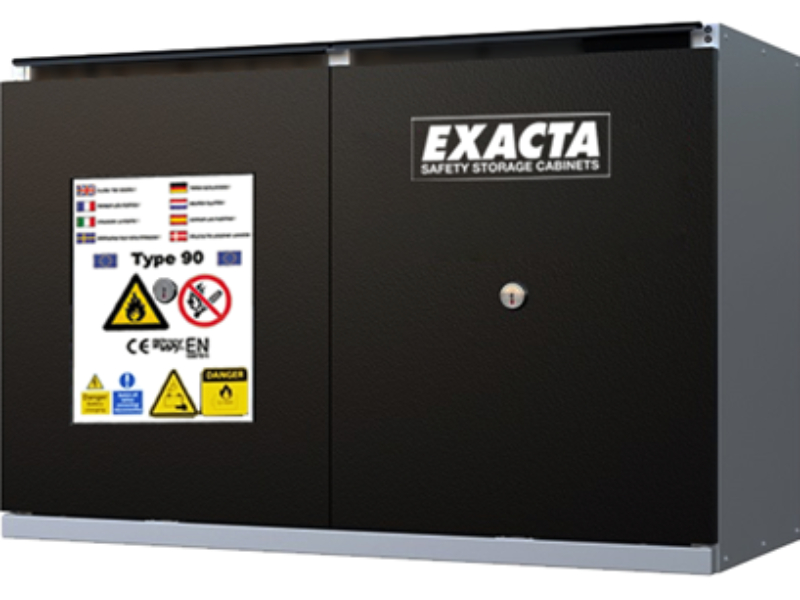

Exacta Lithium Battery Storage Cabinet – Model EOF711L1FNMY23 – Wide Compact – 90 min Fireproof
€1.783,00 excl. VAT
The EOF711L1FNMY23 is a wide-format, compact lithium-ion battery storage cabinet offering 90 minutes of certified fire resistance. Ideal for storing or charging lithium polymer batteries in tight spaces, it features a fire-rated steel sump tray, anti-spark grating, and a 100 mm ventilation collar for connection to optional exhaust systems. Fully compliant with EN14470-1 and ready for integration with charging racks or mobile setups.
The Exacta EOF711L1FNMY23 cabinet is part of the Lithiumsafe range, engineered for the safe and compliant storage of lithium-ion and lithium polymer batteries. Despite its compact height, this wide-format cabinet offers excellent storage capacity and full 90-minute fire resistance certified to EN14470-1:2023.
Built from 15/10 mm electro-galvanized steel with a grey epoxy-coated body and black doors, this cabinet includes a thermally insulated interior using rock wool and calcium sulfate panels. Internal melamine finish resists corrosive vapors. Thermo-expanding door seals and automatic fire dampers enhance containment in the event of a fire.
It comes equipped with a painted steel sump tray and removable grating, spark-proof copper shelf mounts, a 100 mm rear vent collar, and adjustable leveling feet. The cabinet is also compatible with optional castor wheels and power outlet racks for battery charging applications.
This model is ideal for robotics labs, battery charging stations, or R&D spaces needing secure, compact li-ion battery storage.
Warranty: 2 years
Lead time: 4-6 weeks
| Specification | Value |
|---|---|
| External Dimensions (W×D×H) | 1090 × 520 × 720 mm |
| Internal Dimensions (W×D×H) | 978 × 349 × 593 mm |
| Fire Resistance | 90 minutes – EN14470-1:2023, EN16121, EN1363-1 |
| Structure | 15/10 electro-galvanized steel, epoxy-coated |
| Doors | Automatic fire-closing at 50°C, self-latching |
| Insulation | Rock wool + calcium sulfate with melamine finish |
| Shelves | 1 retention tray + 1 steel grating |
| Safety Features | Spark-proof shelf mounts, thermal seals, fire dampers |
| Ventilation Collar | Ø 100 mm rear exhaust collar |
| Locking System | Key lock |
| Color | Grey (RAL 7035) body / Black door |
| Weight | 130 kg |
| Certifications | EN14470-1:2023, EN16121, EN1363-1 |
Optional Accessories:
FBN – Automatic fire extinguisher with temperature sensor
FPC – Temperature-based alarm system + extinguisher, SSI connectable
4GSENSOR – Smoke alarm with SMS, email, and phone notifications
RIPF110VL – Extra internal shelf for wide cabinet
K89560/10 – Set of 6 castor wheels (3 with brakes), height 100 mm
EOFZ110 – Steel base 1100 × 500 × 70 mm
Charging Rack Options (220V):
S220D10PF – Base 10-outlet power rack (220V) with 16A differential breaker
S22010PF – Additional 10-outlet rack (220V) with thermal breaker
Ventilation Kits:
DIAM125BP – Ventilation box with cable + filter housing (Ø 125 mm outlet)
GFKIT125 – Exhaust ducting kit: 1 m flexible tube + 2 clamps (Ø 125 mm)
F100 – Ø 100 mm adapter collar for cabinet/ventilation connection
GFKIT100 – Connection kit: 1 m hose Ø 100 mm + clamps (for cabinet-to-box)
Custom Options:
Blue-painted exterior
Forklift-compatible base
Smart air renewal monitor
Internal temperature alert system
Custom charging configuration on request
