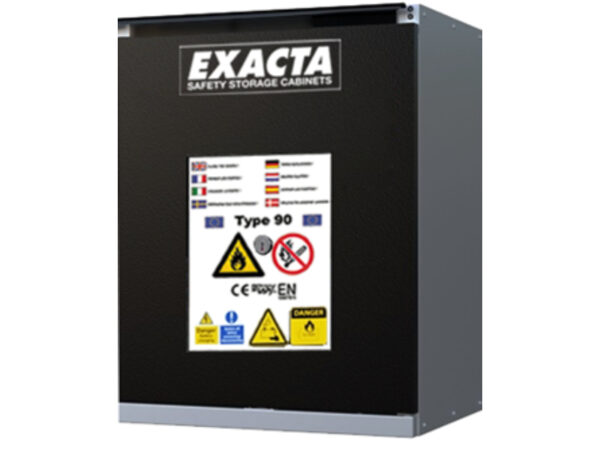

Exacta Lithium Battery Storage Cabinet – Model EOF706GL1FNMY23 – Compact 90 min Fireproof Cabinet
€1.139,00 excl. VAT
The EOF706GL1FNMY23 is a compact lithium-ion battery storage cabinet offering 90 minutes of fire resistance in compliance with EN14470-1. Perfect for storing small quantities of lithium polymer or li-ion batteries, it includes a spill tray with grating and spark-proof hardware. A 100 mm ventilation collar allows safe airflow or optional extraction. Grounding and fire seals ensure top-level safety.
The Exacta EOF706GL1FNMY23 Lithiumsafe cabinet is a space-saving, fire-rated cabinet for storing lithium-ion and lithium-polymer batteries in compact environments.
This compact battery cabinet features a rugged steel structure (15/10 mm thick), coated with acid-resistant epoxy resin and thermally hardened. Its insulation includes rock wool and calcium sulfate panels, ensuring 90-minute fire protection in accordance with EN14470-1:2023. Internal melamine panels resist aggressive vapors.
The cabinet includes a steel sump tray and grating for leak containment, along with spark-proof copper shelf mounts and reinforced support strips. Doors auto-close at 50 °C and fire dampers activate at 70 °C to seal air inlets. A 100 mm vent collar allows connection to an exhaust or filtration system.
Thanks to its light weight and available wheel kit, the EOF706GL1FNMY23 is ideal for mobile lab setups, R&D departments, or battery test benches. Ventilation is strongly recommended to maintain a safe storage environment and ensure full warranty coverage.
Warranty: 2 years
Lead time: 4-6 weeks
| Specification | Value |
|---|---|
| External Dimensions (W×D×H) | 595 × 520 × 720 mm |
| Internal Dimensions (W×D×H) | 483 × 349 × 593 mm |
| Fire Resistance | 90 minutes – EN14470-1:2023, EN16121, EN1363-1 |
| Structure | 15/10 electro-galvanized steel, epoxy resin coating |
| Doors | Self-closing with automatic fire lock at 50°C |
| Insulation | Rock wool and calcium sulfate panels |
| Shelves | 1 painted steel spill tray + 1 grating |
| Safety Features | Thermo seals, fire dampers, spark-proof fixings |
| Ventilation Collar | Ø 100 mm rear exhaust collar |
| Locking System | Key lock |
| Color | Grey (RAL 7035) body / Black door |
| Weight | 75 kg |
| Certifications | EN14470-1:2023, EN16121, EN1363-1 |
Optional Accessories:
FBN – Automatic fire extinguisher with temperature sensor
FPC – Alarm with thermal sensor and extinguisher, linkable to fire control systems
4GSENSOR – Smoke alarm with alerts by SMS, email, and calls
RIPF60VL – Extra internal shelf
K89590/10 – Wheel kit: 4 castors (2 locking), height 100 mm
EOFZ60 – Metal stand/base: 600 × 500 × 70 mm
Electrical Charging Options (220V):
S220D6PF – 6-outlet base rack with differential + thermal breaker (16A)
S2206PF – Additional 6-outlet rack with thermal breaker
Ventilation Options:
DIAM125BP – External ventilation box with power cable and filter box (Ø 125 mm)
GFKIT125 – 1 m ducting kit with 2 clamps (Ø 125 mm)
F100 – 100 mm adapter collar for ventilation connection
GFKIT100 – Armory-to-box ducting kit (1 m, Ø 100 mm + clamps)
Custom Options:
Blue painted finish
Forklift base frame
Smart airflow sensors
Digital temperature monitoring
Compact charging rack integration
