Exacta Lithium Battery Storage Cabinet – Model EOF240L4FNMY23 – 90 min Fire Rated – 4 Shelves – Wide Model
€2.847,00 excl. VAT

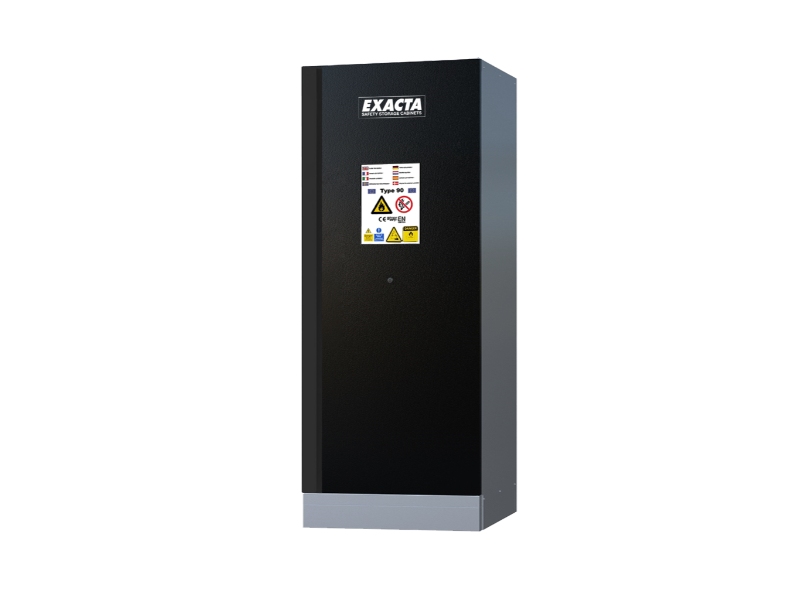

The Exacta EOF240L4FNMY23 is a wide lithium-ion battery storage cabinet with a 90-minute fire resistance rating. Ideal for storing or charging lithium polymer batteries, it features 4 heavy-duty shelves, fire-sealed vents, self-closing doors, and a 100 mm exhaust collar for optional ventilation. Fully compliant with EN14470-1:2023 and equipped with spark-proof shelf mounts and grounding.
Designed to secure larger volumes of lithium-ion and lithium-polymer batteries, the Exacta EOF240L4FNMY23 cabinet combines exceptional fire safety with practical storage and charging capabilities.
Its robust structure is built from 15/10 mm electro-galvanized steel, finished in grey (RAL 7035) with black doors, and coated in acid-resistant epoxy. Internally, high-density rock wool and calcium sulfate panels ensure thermal insulation. Fire-tested melamine panels resist chemical vapors.

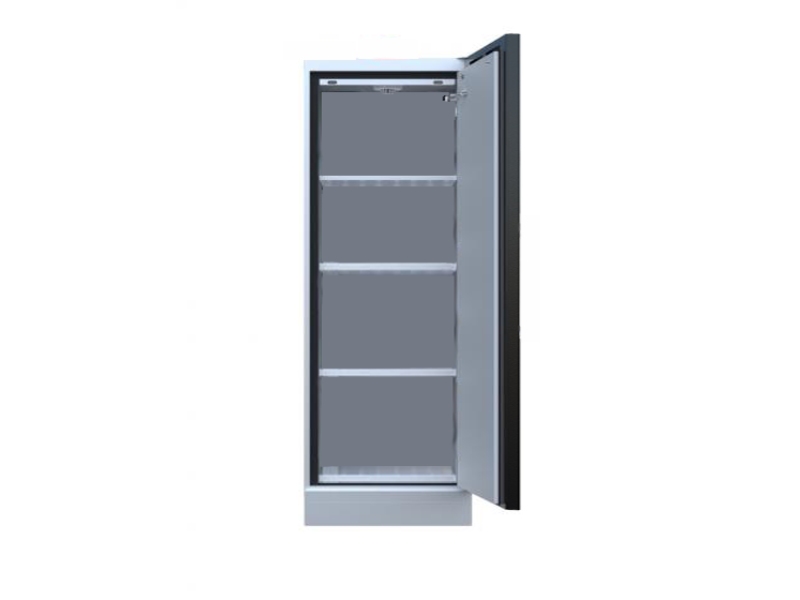

Equipped with four fire-rated steel shelves (70 kg load each), this wide model accommodates bulky batteries. The doors are fitted with thermal seals and close automatically at 50°C. Certified fire dampers shut the ventilation path at 70°C. The 100 mm rear collar allows connection to an exhaust or filtering unit.
This model is ideal for industrial sites, EV workshops, drone labs, or any facility storing or charging high-energy lithium batteries. It complies with EN14470-1:2023 (90 minutes), EN16121, and EN1363-1.
Warranty: 2 years
Lead time: 4-6 weeks
| Specification | Value |
|---|---|
| External Dimensions (W×D×H) | 895 × 600 × 1950 mm (1900 mm body + 50 mm collar) |
| Internal Dimensions (W×D×H) | 796 × 446 × 1540 mm |
| Fire Resistance | 90 minutes – EN14470-1:2023, EN16121, EN1363-1 |
| Structure | 15/10 electro-galvanized steel, acid-resistant epoxy |
| Doors | Self-closing, automatic fire-closing at 50°C |
| Insulation | Rock wool + calcium sulfate panels |
| Shelves | 4 perforated fire-tested shelves (70 kg max each) |
| Safety Features | Fire seals, fire dampers, grounding system |
| Ventilation Collar | Ø 100 mm rear exhaust collar |
| Locking System | Key lock |
| Color | Grey body (RAL 7035) / Black doors |
| Weight | 285 kg |
| Certifications | EN14470-1:2023, EN16121, EN1363-1 |
Optional Accessories:
-
FBN – Automatic fire extinguisher with heat sensor
-
FPC – Temperature-based alarm with extinguisher, connectable to fire systems
-
4GSENSOR – Smoke alarm with SMS, email, and call notifications
-
RIP90LS – Extra shelf for 900 mm-wide cabinet
-
3F90060 – Retention tray for 900 mm-wide cabinet
-
3F90070 – Grating for 900 mm-wide cabinet
-
DIAM125BP – Ventilation box with 125 mm outlet and power cable
-
GFKIT125 – Ducting kit (1 m hose + clamps for Ø125 mm connection)

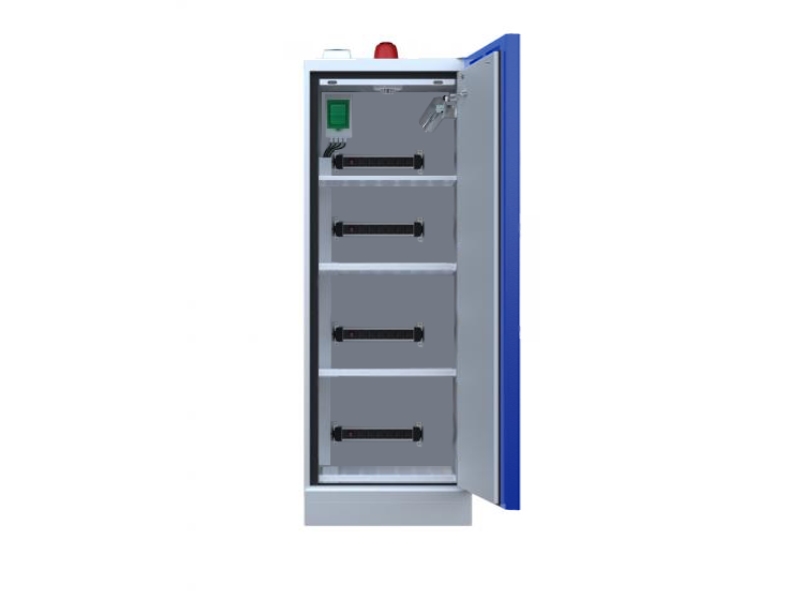

Electrical Options (Charging Racks):
-
S220D6PF – Initial 6-outlet rack (220V) with thermal breaker
-
S2206PF – Additional 6-outlet rack (220V)
-
S220D46PF / S2206X4PF – 4× outlet rack packs with or without breakers (220V)
-
S38046PF / S38046PF63A – 380V outlet packs (32A or 63A)
-
S380D46PF / S380D46PFFPC – 380V packs with breakers (required with FPC alarm)
Custom Options:
-
Blue exterior color
-
Integrated forklift base
-
Digital airflow control
-
Custom outlet configuration
-
Reinforced load-bearing shelves
