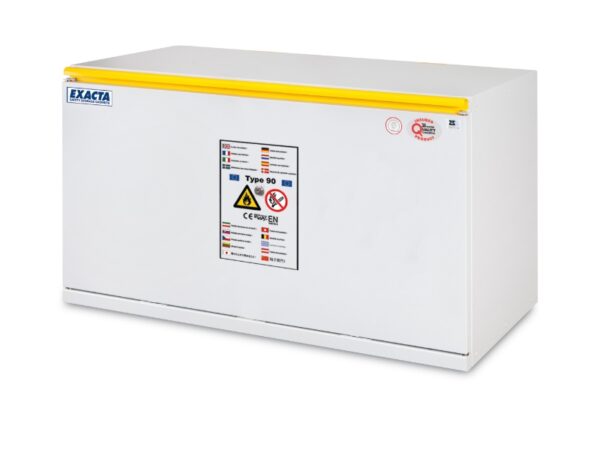

Exacta EOF711TMY23 Fireproof Under-Bench Safety Cabinet with Drawer – Flammable Liquids
Exacta EOF711TMY23 Fireproof Under-Bench Safety Cabinet with Drawer – Flammable Liquids
€1.991,00 excl. VAT
The Exacta EOF711TMY23 is the largest under-bench fireproof cabinet with drawer opening, designed for safe storage of flammable liquids. Offering 90 minutes of certified fire resistance (EN 14470-1 Type 90) and EN 16121 compliance, it combines safety with maximum storage capacity for laboratories.
Large-Capacity Fireproof Cabinet for Flammable Liquids – EN 14470-1 Type 90
The Exacta EOF711TMY23 is designed for laboratories requiring the largest under-bench storage capacity for flammable liquids. With robust electro-galvanized steel construction, anti-acid epoxy finish, and high-density rock wool insulation, the cabinet ensures both durability and fire resistance.
Tested to EN 14470-1:2023, it provides 90 minutes of fire resistance, with intumescent seals that expand under heat and fire dampers that automatically close ventilation ducts. Internal melamine panels resist chemical vapors, while copper-riveted shelving and reinforced supports eliminate spark risk.
With space for up to 30 × 1L bottles, the EOF711TMY23 combines fire safety, ergonomics, and capacity. The drawer system allows safe top access, making it particularly suited for installation under fume hoods. Optional left- or right-hinged doors are also available.
Lead time: 6-7 weeks
| Specification | EOF711TMY23 |
|---|---|
| External dimensions (H×W×D) | 720 × 1090 × 520 mm |
| Internal dimensions (H×W×D) | 593 × 978 × 349 mm |
| Useful height | 449 mm |
| Storage capacity | 30 × 1L bottles |
| Structure | Electro-galvanized steel, epoxy anti-acid coating |
| Fire protection | Rock wool + calcium sulfate panels |
| Fire resistance | 90 minutes (EN 14470-1:2023) |
| Interior | Melamine panels, resistant to vapors |
| Retention system | 1 painted steel retention tray + grid |
| Volume of tray | 34 L |
| Opening type | Drawer (default), left/right doors optional |
| Weight | 140 kg |
| Certifications | EN 16121, EN 14470-1:2023, tested EN 1363-1 |
Versions with flammable liquids labeling
Opening options: Drawer (default), left-turning door, right-turning door
Painted or stainless-steel retention trays
Socle for under-bench installation (1100 × 500 × 70 mm)
Set of 6 castors (3 with brakes)
Ventilation collar Ø100 mm
Ventilation or filtration units (NF X 15-211 compliant)
