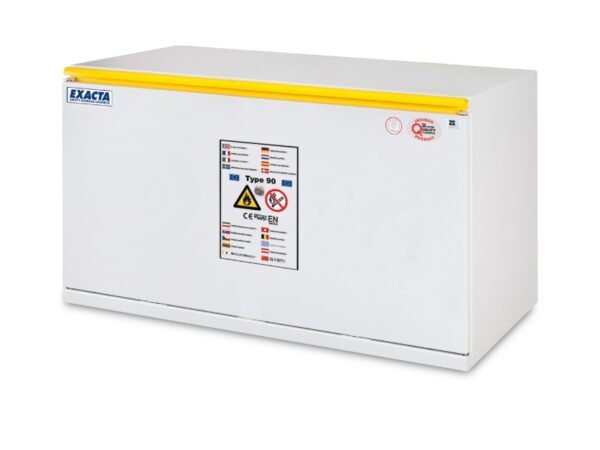

Exacta EOF709TMY23 Fireproof Under-Bench Safety Cabinet with Drawer – Flammable Liquids
€1.872,00 excl. VAT
The Exacta EOF709TMY23 is a wide under-bench cabinet with drawer opening, engineered for safe storage of flammable liquids. Certified to EN 14470-1 Type 90 and EN 16121, it provides 90 minutes of fire resistance and ergonomic access from above. With a 24 × 1L bottle capacity, it is ideal for laboratories requiring larger fireproof storage beneath fume hoods.
Wide Fireproof Under-Bench Cabinet with Drawer – EN 14470-1 Type 90
The Exacta EOF709TMY23 is designed for laboratories that require larger fireproof storage capacity under the workbench. Built from electro-galvanized steel with anti-acid epoxy finish and high-density rock wool insulation, it ensures durability and safety. Fire-tested to EN 14470-1:2023, it provides 90 minutes of certified fire resistance.
The pull-out drawer system allows chemicals to be safely accessed from above, minimizing risks when installed under a fume hood. In case of fire, the cabinet automatically seals through intumescent joints and shuts ventilation via fire dampers.
Certified to EN 14470-1 (Type 90) and EN 16121 strict version, the EOF709TMY23 combines fire resistance with laboratory furniture compliance. Equipped with a retention tray and painted steel grid, it offers safe containment for up to 24 liters of flammables.
Drawer opening is standard, but optional left- or right-hinged doors can be selected.
Lead time: 6-7 weeks
| Specification | EOF709TMY23 |
|---|---|
| External dimensions (H×W×D) | 720 × 890 × 520 mm |
| Internal dimensions (H×W×D) | 593 × 778 × 349 mm |
| Useful height | 449 mm |
| Storage capacity | 24 × 1L bottles |
| Structure | Electro-galvanized steel, epoxy anti-acid coating |
| Fire protection | Rock wool + calcium sulfate panels |
| Fire resistance | 90 minutes (EN 14470-1:2023) |
| Interior | Melamine panels, resistant to vapors |
| Retention system | 1 painted steel retention tray + grid |
| Volume of tray | 27 L |
| Opening type | Drawer (default), left/right doors optional |
| Weight | 120 kg |
| Certifications | EN 16121, EN 14470-1:2023, tested EN 1363-1 |
-
Versions with flammable liquids labeling
-
Opening options: Drawer (default), left-turning door, right-turning door
-
Painted or stainless-steel retention trays
-
Socle for under-bench installation (900 × 500 × 70 mm)
-
Set of 6 castors (3 with brakes)
-
Ventilation collar Ø100 mm
-
Ventilation or filtration units (NF X 15-211 compliant)
