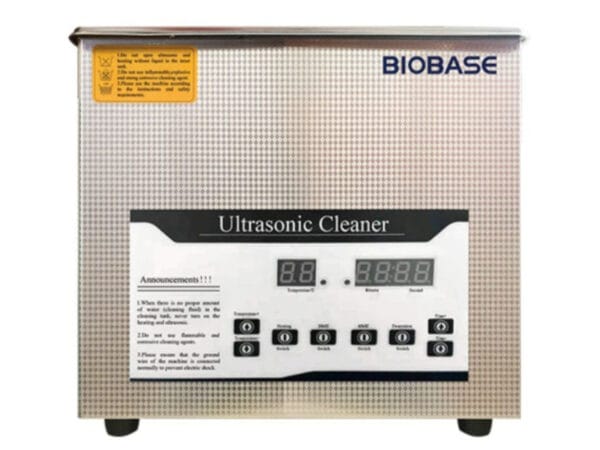

Biobase UC-48VAD Ultrasonic Cleaner – 22.5L Dual Frequency 28/40 kHz

Dual Frequency 28/40 kHz – Powerful and Versatile Cleaning

The Biobase UC-48VAD belongs to the advanced UC-VAD series and offers two selectable ultrasonic frequencies: 28 kHz and 40 kHz.

This dual-frequency capability allows users to adapt cleaning intensity depending on contamination type and material sensitivity.

• 28 kHz mode generates larger cavitation bubbles with stronger implosion force. It is ideal for removing heavy oils, grease, polishing residues and stubborn deposits from robust mechanical components.

• 40 kHz mode provides more uniform and controlled cavitation, making it suitable for laboratory glassware, stainless steel instruments and precision parts.

By combining both frequencies in one system, the UC-48VAD delivers flexibility that single-frequency ultrasonic cleaners cannot offer.

Advantage of 28 kHz for Heavy Contamination

Compared to standard 40 kHz ultrasonic systems, 28 kHz provides:

• Stronger cavitation energy

• Improved removal of industrial contamination

• Faster cleaning of mechanical and production components

• Better performance for degreasing applications

This makes the UC-VAD series particularly suitable for laboratories, production environments and technical workshops that require both standard laboratory cleaning and heavy-duty cleaning capability.

Digital Timer and Adjustable Heating up to 80°C

The UC-48VAD features:

• LED digital display

• Adjustable timer from 1 to 99 minutes

• Heating range up to 80°C

• Independent ultrasonic and heating control

Heating enhances cavitation efficiency and accelerates contaminant dissolution, especially for organic residues and oils.

22.5 Liter Tank for Larger Instruments and Batches

With a generous 22.5 liter tank and internal dimensions of 500 × 300 × 150 mm, the UC-48VAD is ideal for:

• Larger laboratory glassware

• Instrument trays and racks

• Mechanical parts and tooling

• Industrial components

• Pharmaceutical and biotech environments

The extended tank length allows cleaning of longer components while maintaining uniform ultrasonic distribution.

Durable Stainless Steel Construction

The cleaning tank and housing are manufactured from 304 stainless steel, ensuring corrosion resistance and long-term durability.

The unit is delivered complete with:

• Stainless steel basket

• Soundproof cover

• PVC drain pipe

The soundproof lid reduces operational noise and limits aerosol formation during cleaning cycles.
