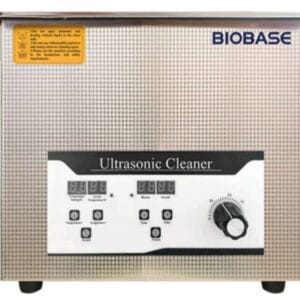

Biobase UC-18VAD Ultrasonic Cleaner – 6.5L Dual Frequency 28/40 kHz
€495,00 excl. VAT
The Biobase UC-18VAD is a professional 6.5L dual-frequency ultrasonic cleaner featuring selectable 28 kHz and 40 kHz operation.
The 28 kHz mode provides stronger cavitation for removal of heavy contamination, while 40 kHz offers controlled cleaning for standard laboratory applications.
The unit includes digital timer control (1–99 minutes), adjustable heating up to 80°C, a stainless steel basket and a soundproof cover as standard.
Ideal for laboratories and technical environments requiring cleaning flexibility.
Dual Frequency 28/40 kHz – Maximum Cleaning Flexibility
The Biobase UC-18VAD belongs to the UC-VAD series and operates at two selectable ultrasonic frequencies: 28 kHz and 40 kHz.
This dual-frequency functionality significantly expands the application range compared to single-frequency systems.
28 kHz mode generates larger cavitation bubbles with stronger implosion force. This makes it ideal for removing heavy contamination, polishing residues, oils and stubborn deposits from robust components.
40 kHz mode provides more uniform and controlled cavitation, suitable for standard laboratory glassware, stainless steel instruments and precision parts.
By combining both frequencies in one system, the UC-18VAD allows users to adapt cleaning intensity depending on contamination level and material sensitivity.
Advantage of 28 kHz Compared to Standard 40 kHz
While 40 kHz is the industry standard for general-purpose ultrasonic cleaning, 28 kHz offers increased cavitation energy.
Advantages of 28 kHz include:
More aggressive cleaning action
Better performance for heavy oils and greases
Improved cleaning of industrial parts
Effective removal of polishing compounds
This makes the UC-VAD series particularly attractive for laboratories that also clean mechanical or industrial components.
Digital Control and Adjustable Heating
The UC-18VAD features:
LED digital display
Timer adjustable from 1 to 99 minutes
Heating range up to 80°C
Independent ultrasonic and heating control
Heating enhances cleaning efficiency by improving detergent activity and accelerating contaminant dissolution.
Robust Stainless Steel Construction
The cleaning tank and housing are made of 304 stainless steel, ensuring:
Corrosion resistance
Long service life
Suitability for laboratory and industrial use
The unit is delivered complete with:
Stainless steel basket
Soundproof cover
PVC drain pipe
The soundproof lid reduces operational noise and minimizes aerosol formation during cleaning cycles.
Ideal Applications
The Biobase UC-18VAD is suitable for:
Laboratory glassware
Medical and dental instruments
Mechanical components
Industrial tooling
Research and pharmaceutical environments
Its dual-frequency system makes it more versatile than single-frequency ultrasonic cleaners.
Technical Specifications – Biobase UC-18VAD
| Specification | Value |
|---|---|
| Model | UC-18VAD |
| Ultrasonic Frequency | 28/40 kHz (Dual Frequency) |
| Capacity | 6.5 L |
| Timer Range | 1–99 min |
| Heating Range | RT to 80°C |
| Ultrasonic Power | 180 W |
| Heating Power | 500 W |
| Power Supply | 220V, 50Hz |
| Tank Size (W×D×H) | 300 × 150 × 150 mm |
| External Size | 330 × 180 × 310 mm |
| Packing Size | 440 × 280 × 355 mm |
| Gross Weight | 7 kg |
| Tank Material | 304 Stainless Steel |
| Included Accessories | Basket + Soundproof Cover + PVC Pipe |
Basket + Soundproof Cover Included
