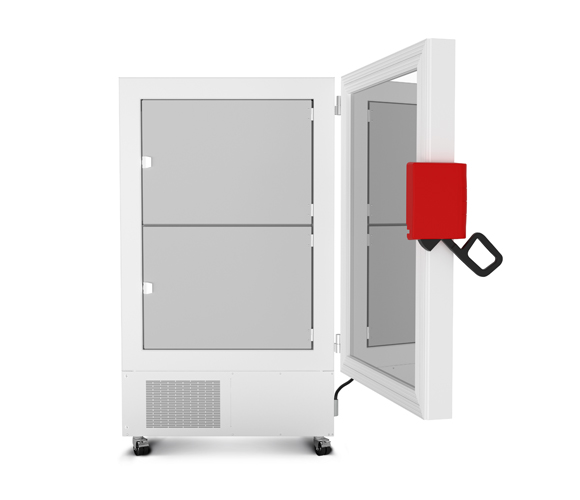

Binder UV V 700 ultra-low temperature freezer
€15.330,00 excl. VAT
Benefits:
- Lowest energy consumption in its class
- Environmentally-friendly refrigerants R-290 and R-170
- Thermal insulation with unique long-life VIPs (vacuum insulation panels)
- Rust-proof interior made completely of stainless steel
Important features:
- Temperature range: -90 °C to -40 °C
- Lowest energy consumption in its class
- Powerful cascade compressor cooling unit
- Environmentally friendly refrigerants R-290 and R-170
- Thermal insulation with unique long-life VIPs (vacuum insulation panels)
- Innovative door gasket concept reduces buildup of ice
- Ergonomic door handle
- Rust-proof interior made completely of stainless steel
- Detachable inner doors made of stainless steel
- 3 stainless-steel shelves providing flexible placement
- Zero-voltage alarm contact for in-house alarm system
- Internal data logger, measured values can be read out in open format via USB
- Ethernet interface
- 3 access ports, Ø 28 mm, rear
Description
Binder UF V 700 Ultra Low Temperature Freezer – Secure –90 °C Storage in 736 L Capacity
The Binder UF V 700 ultra low temperature freezer is engineered for high-capacity sample storage in demanding laboratory environments. Offering a wide temperature range from –90 °C to –40 °C and a generous 736 L stainless steel chamber, this ULT freezer provides a reliable and energy-efficient solution for long-term preservation of biological and chemical materials.
The unit features a powerful cascade refrigeration system with vacuum-insulated panels and uses climate-neutral refrigerants (R‑290/R‑170) to deliver excellent thermal stability. With energy consumption of approximately 8.1 kWh/day at –80 °C and a low noise level of 47 dB(A), the UF V 700 ensures both performance and comfort in laboratory settings.
Designed with user safety and convenience in mind, it includes a robust door handle, detachable inner doors, and three stainless-steel shelves (expandable to thirteen), accommodating up to 528 cryoboxes (50 mm). Two Ø 28 mm access ports allow for external sensor integration, while integrated data logging (USB/Ethernet), visual and audible alarms, and zero-voltage contacts ensure full monitoring and compliance with GLP requirements. Optional water-cooling is also available.
Key Features:
-
Temperature range: –90 °C to –40 °C
-
736 L rust-proof stainless steel interior
-
Vacuum-insulated panels with cascade compressor system
-
Energy consumption: ~8.1 kWh/day at –80 °C
-
Climate-neutral refrigerants R‑290/R‑170
-
Three stainless steel shelves (expandable to 13)
-
Capacity: up to 528 cryoboxes (50 mm)
-
Internal data logger with USB/Ethernet interface
-
Visual and audible alarms with zero-voltage contact
-
Two Ø 28 mm rear access ports
-
Optional water-cooling system
-
Noise level: 47 dB(A)
The Binder UF V 700 combines large-volume storage, high efficiency, and advanced safety features—making it a dependable ULT freezer for large-scale scientific applications.
Specifications
Warranty: 5 years, 12 years on compressors
Lead time: 1-2 weeks
| Designation | UFV700-230V |
| Article Number | 9020-0348 |
| Performance Data Temperature | |
| Temperature range | -90…-40 °C |
| Temperature uniformity at -80°C | 2.5 ± K |
| Temperature fluctuation at -80°C | 1.5 ± K |
| Cooling down time from 22°C to -80°C | 450 min |
| Measures | |
| Interior volume | 736 L |
| Net weight of the unit (empty) | 288 kg |
| Permitted load | 200 kg |
| Doors | |
| Unit doors | 1 |
| Inner doors | 2 |
| Internal Dimensions | |
| Interior width | 890 mm |
| Interior height | 1,300 mm |
| Interior depth | 636 mm |
| Wall clearance | |
| Wall clearance back | 100 mm |
| Wall clearance sidewise | 250 mm |
| Housing dimensions not incl. fittings and connections | |
| Width net | 1,110 mm |
| Height net | 1,966 mm |
| Depth net | 938 mm |
| Electrical data | |
| Housing protection acc. to EN 60529 | IP 20 |
| Rated Voltage | 230 V |
| Power frequency | 50 Hz |
| Nominal power | 1,6 kW |
| Nominal current | 7,0 A |
| Unit fuse | 10,0 A |
| Phase (Nominal voltage) | 1~ |
| Environment-specific data | |
| Sound-pressure level | 47 dB(A) |
| Energy consumption at set value -80°C and Ta = 20°C | 8.1 kWh/d |
| Fixtures | |
| Number of shelves (std./max.) | 3/11 |
| Load-variants | |
| Freezer racks per compartment | 6 |
| Cryoboxes, 50 mm | 528 |
| Cryoboxes, 75 mm | 336 |
Full list: see datasheet
