Binder UV V 500 ultra-low temperature freezer
€13.797,00 excl. VAT
Benefits:
- Lowest energy consumption in its class
- Environmentally-friendly refrigerants R-290 and R-170
- Thermal insulation with unique long-life VIPs (vacuum insulation panels)
- Rust-proof interior made completely of stainless steel
Important features:
- Temperature range: -90 °C to -40 °C
- Lowest energy consumption in its class
- Powerful cascade compressor cooling unit
- Environmentally friendly refrigerants R-290 and R-170
- Thermal insulation with unique long-life VIPs (vacuum insulation panels)
- Innovative door gasket concept reduces buildup of ice
- Ergonomic door handle
- Rust-proof interior made completely of stainless steel
- Detachable inner doors made of stainless steel
- 3 stainless-steel shelves providing flexible placement
- Zero-voltage alarm contact for in-house alarm system
- Internal data logger, measured values can be read out in open format via USB
- Ethernet interface
- 3 access ports, Ø 28 mm, rear
Description

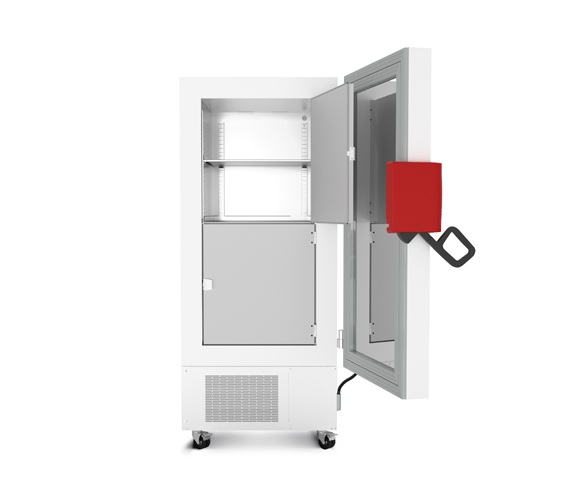

Binder UF V 500 Ultra Low Temperature Freezer – Secure -90 °C Storage in 501 L Capacity
The Binder UF V 500 ultra low temperature freezer is purpose-built for demanding laboratory environments, offering precise and reliable storage from -90 °C to -40 °C. With an internal capacity of 501 L, this ULT freezer is perfectly suited for long-term preservation of vaccines, cell cultures, enzymes, and other critical samples.
Featuring a robust stainless steel interior and vacuum-insulated panels, the UF V 500 provides exceptional thermal stability and fast temperature recovery. Its powerful cascade refrigeration system uses climate-neutral refrigerants (R‑290/R‑170) and delivers one of the lowest energy consumption figures in its class—around 7.9 kWh/day at -80 °C. The design includes innovative gasket technology to reduce ice buildup, ergonomic door handles, detachable inner doors, and three stainless-steel shelves (expandable to thirteen) for flexible organization.
For precise control and secure operations, the UF V 500 is equipped with an internal data logger (USB/Ethernet), zero-voltage alarm contact, alarm systems, operating hours counter, and two Ø 28 mm access ports for external monitoring or validation. It also offers optional water-cooling, ultra-quiet performance at 47 dB(A), and accommodates up to 352 cryoboxes (50 mm) across four compartments.
Key Features:
-
Temperature range: -90 °C to -40 °C
-
501 L stainless steel chamber
-
Vacuum-insulated panels & low energy consumption (~7.9 kWh/day)
-
Climate‑neutral refrigerants R‑290/R‑170
-
Cascade compressor cooling system
-
3 stainless-steel shelves (expandable to 13), plus four compartments
-
Internal data logger + USB/Ethernet interfaces
-
Visual/audible alarms + zero-voltage alarm contact
-
Two Ø 28 mm access ports
-
Water-cooling option; 47 dB(A) noise level
Designed for GLP-compliant laboratories, the UF V 500 offers advanced control, superior safety, and eco-friendly performance—making it a dependable ULT freezer for preserving sensitive scientific samples.
Specifications
Warranty: 5 years, 12 years on compressors
Lead time: 1-2 weeks
| Designation | UFV500-230V |
| Article Number | 9020-0347 |
| Performance Data Temperature | |
| Temperature range | -90…-40 °C |
| Temperature uniformity at -80°C | 2.5 ± K |
| Temperature fluctuation at -80°C | 1.5 ± K |
| Cooling down time from 22°C to -80°C | 360 min |
| Measures | |
| Interior volume | 501 L |
| Net weight of the unit (empty) | 247 kg |
| Permitted load | 200 kg |
| Doors | |
| Unit doors | 1 |
| Inner doors | 2 |
| Internal Dimensions | |
| Interior width | 606 mm |
| Interior height | 1,300 mm |
| Interior depth | 636 mm |
| Wall clearance | |
| Wall clearance back | 100 mm |
| Wall clearance sidewise | 250 mm |
| Housing dimensions not incl. fittings and connections | |
| Width net | 826 mm |
| Height net | 1,966 mm |
| Depth net | 938 mm |
| Electrical data | |
| Housing protection acc. to EN 60529 | IP 20 |
| Rated Voltage | 230 V |
| Power frequency | 50 Hz |
| Nominal power | 1,6 kW |
| Nominal current | 7,0 A |
| Unit fuse | 10,0 A |
| Phase (Nominal voltage) | 1~ |
| Environment-specific data | |
| Sound-pressure level | 47 dB(A) |
| Energy consumption at set value -80°C and Ta = 20°C | 7.9 kWh/d |
| Fixtures | |
| Number of shelves (std./max.) | 3/11 |
| Load-variants | |
| Freezer racks per compartment | 4 |
| Cryoboxes, 50 mm | 352 |
| Cryoboxes, 75 mm | 224 |
Full list: see datasheet
