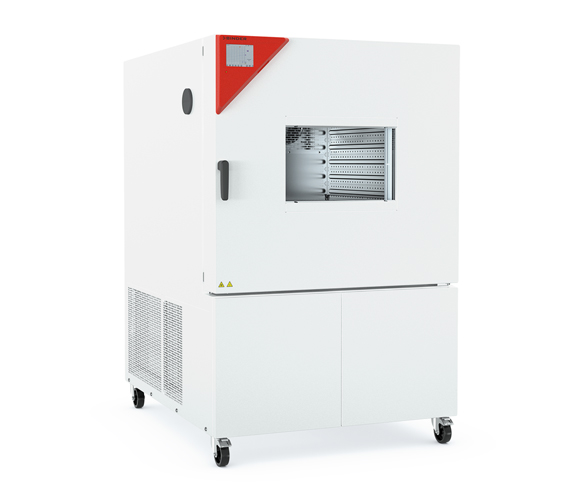

Binder MKF 400 dynamic climate chamber
Pricing on request
Benefits:
- Homogeneous climate conditions thanks to APT.line™ technology
- Automatic water and wastewater management
- Pressure humidification with fast response times
- Comprehensive programming and data acquisition
- Large heated viewing window
Important features:
- Temperature range: -40°C to +180°C
- Humidity range: 10% to 98% RH
- Humidity regulation with capacitive humidity sensor and steam humidification
- APT.line™ preheating chamber technology
- Intuitive touchscreen controller with time-segment and real-time programming
- CFC-free refrigerant R-452A
- Integrated water-storage tank, 20 L
- 1 stainless steel rack
- Access port with silicone plug (models 56, 115, 240, 400), 50 mm, left
- 2 access ports with silicone plugs (models 720, 1020), 80 mm, left and right
- 4 zero-voltage relay contacts
- Heated viewing window with LED interior lighting
Binder MKF 400 Climate Chamber – 417 L Dynamic Environmental Chamber for Fast Temperature and Humidity Cycles
The Binder MKF 400 climate chamber delivers outstanding performance for environmental simulation involving rapid temperature and humidity changes. Designed for high-precision testing in electronics, automotive, aerospace, and materials science, this 417-liter chamber meets the strictest industry standards for reliability and reproducibility.
With a temperature range from –40 °C to +180 °C and a humidity range of 10 % to 98 % RH, the MKF 400 ensures stable and uniform test conditions. APT.line™ preheating technology guarantees even temperature distribution throughout the chamber, while a steam humidification system with a capacitive humidity sensor ensures fast and accurate humidity control.
The intuitive touchscreen controller enables time-segment and real-time programming, while data can be recorded and exported via USB and Ethernet. The system also features an integrated chart recorder, ramp functions, and programmable condensation protection. Safety is ensured with a Class 2 temperature safety device and comprehensive alarm functions.
A 20-liter water tank is integrated for automatic humidification and drainage, eliminating the need for direct plumbing. The MKF 400 also includes a heated viewing window with LED interior lighting, a 50 mm access port, and four castors for easy mobility. It operates with CFC-free R‑452A refrigerant, making it a sustainable choice for demanding lab environments.
Key Features:
Temperature range: –40 °C to +180 °C (±0.1 to ±1.2 K uniformity)
Humidity range: 10 % to 98 % RH (±2.5 %)
Chamber volume: 417 L
APT.line™ preheating for uniform climate conditions
Steam humidification with capacitive humidity sensor
Integrated 20 L water tank for automatic supply and drainage
Touchscreen controller with ramp, time-segment, and real-time programming
Data export: USB and Ethernet with integrated chart recorder
50 mm access port, heated viewing window, and LED lighting
Class 2 safety device with alarms and programmable protection
Mounted on castors (two with brakes) for easy repositioning
Refrigerant: R‑452A, CFC-free and environmentally responsible
Warranty: 2 years
Lead time: 2-3 weeks
| Designation | MKF400-400V |
| Article Number | 9020-0408 |
| Performance Data Temperature | |
| Temperature range | -40…180 °C |
| Temperature uniformity dependent on set value | 0.1…1.2 ± K |
| Temperature fluctuation dependent on set value | 0.1…0.5 ± K |
| Average heating-up rate according to IEC 60068-3-5 | 5.0 K/min |
| Cooling down time from 180°C to -40°C | 115 min |
| Average cooling down time according to IEC 60068-3-5 | 5.0 K/min |
| Performance Data Climate | |
| Temperature range with humidity | 10…95 °C |
| Humidity range | 10…98 % RH |
| Temperature fluctuation with humidity dependent on set value | 0.1…1.3 ± K |
| Humidity fluctuation with humidity dependent on set value | 2,5 ± % r.F. |
| Max. heat compensation at 25°C and 90% RH | 800 W |
| Measures | |
| Interior volume | 417 L |
| Net weight of the unit (empty) | 432 kg |
| Load per rack | 30 kg |
| Permitted load | 150 kg |
| Doors | |
| Unit doors | 1 |
| Internal Dimensions | |
| Interior width | 735 mm |
| Interior height | 700 mm |
| Interior depth | 810 mm |
| Wall clearance | |
| Wall clearance back | 500 mm |
| Wall clearance sidewise | 300 mm |
| Housing dimensions not incl. fittings and connections | |
| Width net | 1,115 mm |
| Height net | 1,710 mm |
| Depth net | 1,400 mm |
| Electrical data | |
| Housing protection acc. to EN 60529 | IP20 |
| Rated Voltage | 400 V |
| Power frequency | 50 Hz |
| Nominal power | 8 kW |
| Nominal current | 12,5 A |
| Unit fuse | 16,0 A |
| Phase (Nominal voltage) | 3~/N/PE |
| Environment-specific data | |
| Sound-pressure level | 65 dB(A) |
| Energy consumption at 25°C and 60% RH | 1,900 Wh/h |
| Fixtures | |
| Number of shelves (std./max.) | 1/6 |
Full list: see datasheet
