Binder KBF-S ECO 240 constant climate chamber
€12.331,00 excl. VAT
Benefits:
- Safe thanks to standard-compliant testing according to the ICH Q1A guideline, even with full load.
- Reliable thanks to failsafe operation without compromise.
- Smart, as a wide range of accessories makes it highly compatible for adaptation to specific customer requirements.
- Economical, as energy consumption is minimal thanks to optimized thermoelectric cooling.
Important features:
- Temperature range: 0 °C to +70 °C (max. 28 °C under ambient temperature)
- Humidity range: 10% to 80% RH
- APT.line™ preheating chamber technology
- Independent water supply via tank
- LCD to display temperature and humidity along with additional information and alarms
- Internal data logger, measured values can be read out in open format via USB
- Unit self-test for comprehensive status analysis
- Inner chamber made completely of stainless steel
- 2 stainless steel racks, including shelf carrier
- Access port with silicone plug Ø 30 mm, left
- Computer interface: Ethernet
Description

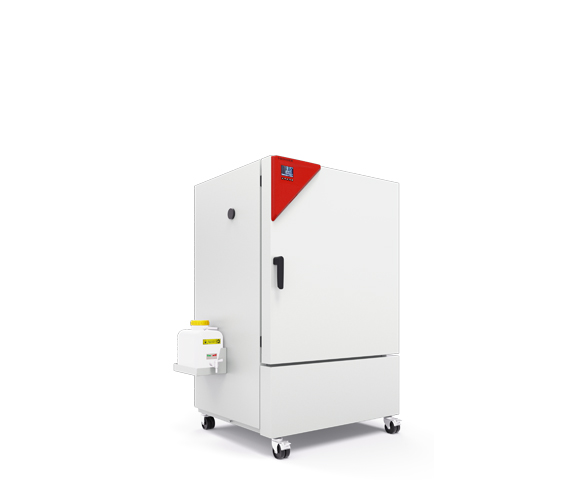

Binder KBF-S ECO 240 Constant Climate Chamber – 247 L with Energy-Efficient Peltier Technology
The Binder KBF-S ECO 240 constant climate chamber provides precise temperature and humidity control for stability testing in pharmaceutical, chemical, and research laboratories. With a 247-liter stainless steel chamber, this unit is designed for reliable and energy-efficient constant climate applications.
Operating within a temperature range of 0 °C to 70 °C and a humidity range of 10% to 80% RH, the KBF-S ECO 240 ensures stable and uniform environmental conditions without the use of refrigerants. The chamber’s Peltier technology delivers quiet, maintenance-free cooling and heating, enhancing sustainability and reducing operating costs.
Binder’s APT.line™ preheating technology guarantees even temperature distribution throughout the chamber, while a capacitive humidity sensor combined with steam humidification provides accurate humidity regulation. The touchscreen controller enables intuitive programming and real-time monitoring of test parameters.

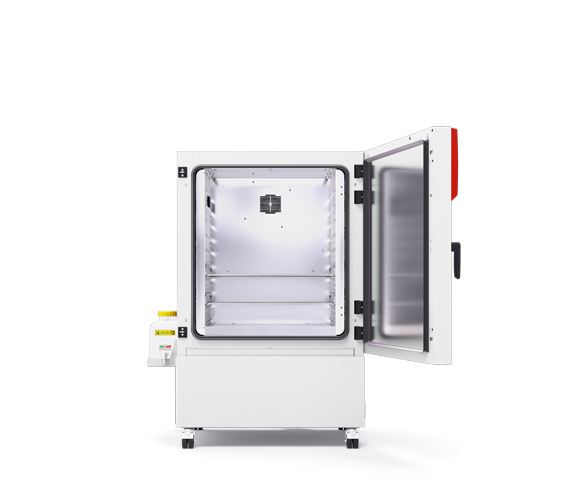

Two telescopic stainless steel racks (expandable up to 9) offer flexible sample loading, and a 30 mm access port accommodates external sensors. Safety is ensured with a Class 3.3 independent temperature safety device featuring audible and visual alarms.
Key Features:
-
Temperature range: 0 °C to 70 °C
-
Humidity range: 10% to 80% RH
-
Chamber volume: 247 liters
-
Peltier cooling and heating technology—no refrigerants
-
APT.line™ preheating for uniform temperature distribution
-
Capacitive humidity sensor with steam humidification
-
Intuitive touchscreen controller with real-time display
-
USB and Ethernet ports for GLP-compliant data export
-
Class 3.3 temperature safety device with alarms
-
Ø 30 mm access port for external monitoring
-
Two telescopic stainless steel racks (expandable up to 9)
-
Mobile design with locking casters
The Binder KBF-S ECO 240 is an eco-friendly and dependable climate chamber designed for precise constant climate testing with reduced energy consumption.
Specifications
Warranty: 2 years
Lead time: 1-2 weeks
| Designation | KBFSECO240-230V |
| Article Number | 9020-0416 |
| Performance Data Temperature | |
| Temperature range | (max. 28 °C under ambient temperature) 0…70 °C |
| Max. heat compensation at 40°C | 250 W |
| Performance Data Climate | |
| Temperature range with humidity | (max. 28 °C under ambient temperature) 5…70 °C |
| Humidity range | 10…80 % RH |
| Temperature uniformity at 25°C and 60% RH | 0.1 ± K |
| Temperature uniformity at 40°C and 75% RH | 0.2 ± K |
| Temperature fluctuation at 25°C and 60% RH | 0.1 ± K |
| Temperature fluctuation at 40°C and 75% RH | 0.1 ± K |
| Recovery time after door was opened for 30 s at 25°C and 60% RH | 5 min |
| Recovery time after door was opened for 30 s at 40°C and 75% RH | 11 min |
| Measures | |
| Interior volume | 247 L |
| Net weight of the unit (empty) | 146 kg |
| Load per rack | 30 kg |
| Permitted load | 100 kg |
| Doors | |
| Unit doors | 1 |
| Internal Dimensions | |
| Interior width | 650 mm |
| Interior height | 785 mm |
| Interior depth | 485 mm |
| Wall clearance | |
| Wall clearance back | 100 mm |
| Wall clearance sidewise | 180 mm |
| Housing dimensions not incl. fittings and connections | |
| Width net | 932 mm |
| Height net | 1,461 mm |
| Depth net | 796 mm |
| Electrical data | |
| Housing protection acc. to EN 60529 | IP 20 |
| Rated Voltage | 200…230 V |
| Power frequency | 50/60 Hz |
| Nominal power | 0,8 kW |
| Nominal current | 3,5 A |
| Unit fuse | 16,0 A |
| Phase (Nominal voltage) | 1~ |
| Environment-specific data | |
| Sound-pressure level | 46 dB(A) |
| Energy consumption at 25°C and 60% RH | 55 Wh/h |
| Energy consumption at 40°C and 75% RH | 85 Wh/h |
| Fixtures | |
| Number of shelves (std./max.) | 2/9 |
Full list: see datasheet
