Binder KBF-S ECO 1020 constant climate chamber
€21.790,00 excl. VAT
Benefits:
- Safe thanks to standard-compliant testing according to the ICH Q1A guideline, even with full load.
- Reliable thanks to failsafe operation without compromise.
- Smart, as a wide range of accessories makes it highly compatible for adaptation to specific customer requirements.
- Economical, as energy consumption is minimal thanks to optimized thermoelectric cooling.
Important features:
- Temperature range: 0 °C to +70 °C (max. 28 °C under ambient temperature)
- Humidity range: 10% to 80% RH
- APT.line™ preheating chamber technology
- Independent water supply via tank
- LCD to display temperature and humidity along with additional information and alarms
- Internal data logger, measured values can be read out in open format via USB
- Unit self-test for comprehensive status analysis
- Inner chamber made completely of stainless steel
- 2 stainless steel racks, including shelf carrier
- Access port with silicone plug Ø 30 mm, left
- Computer interface: Ethernet
Description

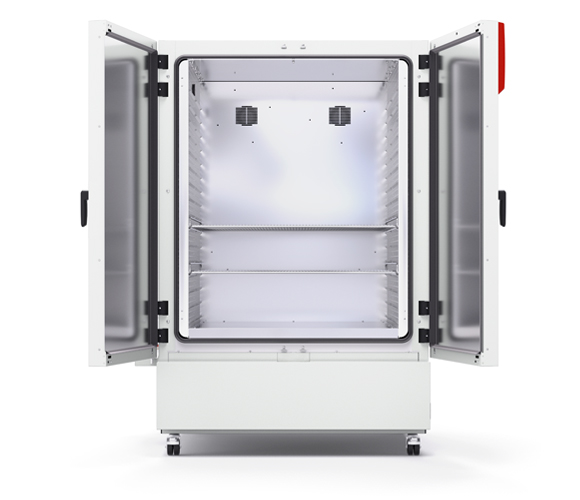

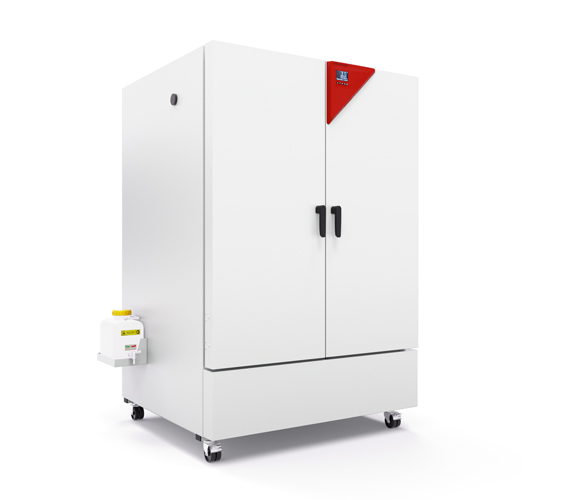

Binder KBF-S ECO 1020 Constant Climate Chamber – 1020 L for Large-Volume Stability Testing
The Binder KBF-S ECO 1020 constant climate chamber is engineered for high-volume stability testing and environmental simulation in pharmaceutical, chemical, and life science laboratories. With a spacious 1020-liter stainless steel chamber, it offers consistent performance and exceptional energy efficiency for large sample throughput.
Operating within a temperature range of 0 °C to 70 °C and a humidity range of 10% to 80% RH, the chamber ensures precise and stable test conditions. The use of Peltier technology for both cooling and heating eliminates refrigerants, delivering quiet operation and reducing energy costs without compromising on performance.
Equipped with APT.line™ preheating technology, the KBF-S ECO 1020 ensures uniform temperature distribution across the entire chamber. Its capacitive humidity sensor and steam humidification system deliver accurate humidity control, ideal for ICH-compliant stability tests.
The intuitive touchscreen controller supports real-time parameter monitoring and easy programming. GLP-compliant data export is possible via USB or Ethernet. With two stainless steel telescopic racks (expandable up to 15), a 30 mm access port, and a Class 3.3 temperature safety device, this Binder climate chamber ensures flexibility and safety for critical long-term applications.
Key Features:
-
Temperature range: 0 °C to 70 °C
-
Humidity range: 10% to 80% RH
-
Chamber volume: 1020 liters
-
Energy-efficient Peltier cooling/heating (no refrigerants)
-
APT.line™ preheating for uniform climate conditions
-
Capacitive humidity sensor and steam humidification
-
Intuitive touchscreen controller with real-time monitoring
-
GLP-compliant USB and Ethernet data logging
-
Class 3.3 independent temperature safety device with alarm
-
Ø 30 mm access port for external sensors
-
Two stainless steel telescopic racks (expandable to 15)
-
Mobile design with heavy-duty casters
The Binder KBF-S ECO 1020 is the ideal large-capacity constant climate chamber for researchers who demand precision, energy efficiency, and long-term reliability.
Specifications
Warranty: 2 years
Lead time: 1-2 weeks
| Designation | KBFSECO1020-230V |
| Article Number | 9020-0419 |
| Performance Data Temperature | |
| Temperature range | (max. 24 °C under ambient temperature) 0…70 °C |
| Max. heat compensation at 40°C | 400 W |
| Performance Data Climate | |
| Temperature range with humidity | (max. 24 °C under ambient temperature) 5…70 °C |
| Humidity range | 10…80 % RH |
| Temperature uniformity at 25°C and 60% RH | 0.1 ± K |
| Temperature uniformity at 40°C and 75% RH | 0.5 ± K |
| Temperature fluctuation at 25°C and 60% RH | 0.1 ± K |
| Temperature fluctuation at 40°C and 75% RH | 0.1 ± K |
| Recovery time after door was opened for 30 s at 25°C and 60% RH | 5 min |
| Recovery time after door was opened for 30 s at 40°C and 75% RH | 15 min |
| Measures | |
| Interior volume | 1,020 L |
| Net weight of the unit (empty) | 322 kg |
| Load per rack | 45 kg |
| Permitted load | 150 kg |
| Doors | |
| Unit doors | 2 |
| Internal Dimensions | |
| Interior width | 973 mm |
| Interior height | 1,250 mm |
| Interior depth | 836 mm |
| Wall clearance | |
| Wall clearance back | 100 mm |
| Wall clearance sidewise | 180 mm |
| Housing dimensions not incl. fittings and connections | |
| Width net | 1,254 mm |
| Height net | 1,925 mm |
| Depth net | 1,146 mm |
| Electrical data | |
| Housing protection acc. to EN 60529 | IP 20 |
| Rated Voltage | 200…230 V |
| Power frequency | 50/60 Hz |
| Nominal power | 1,2 kW |
| Nominal current | 5,3 A |
| Unit fuse | 16,0 A |
| Phase (Nominal voltage) | 1~ |
| Environment-specific data | |
| Sound-pressure level | 49 dB(A) |
| Energy consumption at 25°C and 60% RH | 90 Wh/h |
| Energy consumption at 40°C and 75% RH | 135 Wh/h |
| Fixtures | |
| Number of shelves (std./max.) | 2/15 |
Full list: see datasheet
