Binder KBF PRO 1060 constant climate chamber
€33.215,00 excl. VAT
Benefits:
- Reliable and powerful thanks to innovative temperature control technology
- Reliable: failsafe operation over the long term thanks to proven compressor technology and inner chamber made of stainless steel
- Smart: signal triangle with light-up status display, ergonomic control terminal with touchscreen program controller, rack with telescopic rails
- Efficient: low energy consumption thanks to modern inverter cooling technology
Important features:
- Temperature range: -20°C to +100°C
- Humidity range: 10% to 98% RH
- Proven APT.line™ preheating chamber technology
- Up to 40% lower energy consumption compared to the previous model
- Energy-efficient cooling with modern inverter cooling unit
- Cooling with climate-neutral R-290 refrigerant
- Door heating to prevent condensation
- Adjustable fan speed
- Humidity regulation with capacitive humidity sensor and responsive steam humidification
- Robust housing design with HIT sandwich technology
- Stainless-steel inner chamber
- Inner doors made of metal oxide-coated safety glass
- Two racks made of stainless steel (for models from 260 with telescopic rails)
- Large access port with silicone plug
- Floor-standing units (from model 260) featuring robust twin casters, with brakes at the front
- Intuitive touchscreen controller with time-segment and real-time programming
- Ergonomically adjustable control terminal (from model 470)
- Signal triangle with light-up status display (from model 470)
- Internal data logger, measured values can be read out in open format via USB
- Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarms
- Unit self-test for comprehensive status analysis
- Data interfaces: Ethernet, USB
- BINDER Multi Management Software APT-COM™ basic edition
- Optional light modules for ICH photostability testing (for models 260, 470, 720)
- Optional LED light modules for plant growth (for models from 260)
Description

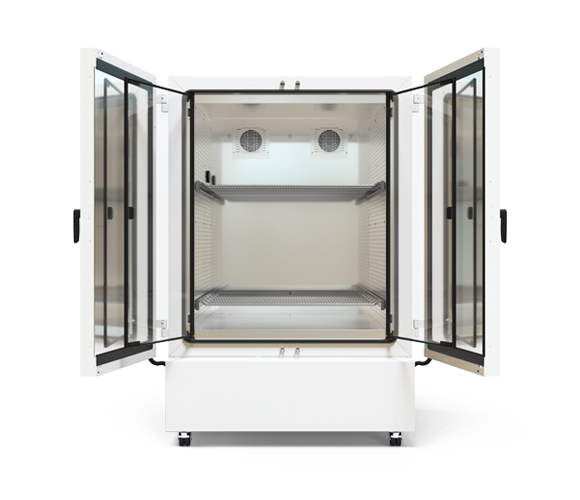

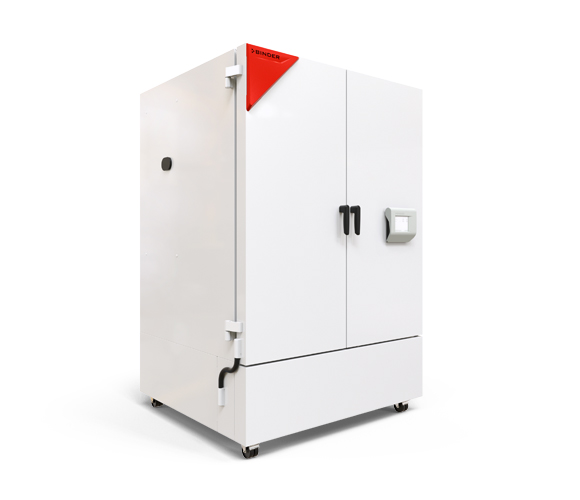

Binder KBF PRO 1060 Constant Climate Chamber – 1070 L for Maximum Capacity and Precision
The Binder KBF PRO 1060 constant climate chamber is built for laboratories that require the highest capacity and the most accurate environmental control for long-term stability testing and stress simulations. With an expansive 1070-liter stainless steel chamber, this unit meets the needs of high-throughput pharmaceutical, chemical, and life science facilities.
Covering a temperature range of –20 °C to +100 °C and a humidity range of 10% to 98% RH, the KBF PRO 1060 ensures precise, stable, and uniform test conditions. The Binder APT.line™ preheating technology guarantees homogeneous temperature distribution, while the high-efficiency inverter compressor system, operating on natural R‑290 refrigerant, dramatically reduces energy consumption without compromising performance.
Steam humidification combined with a capacitive humidity sensor provides accurate moisture regulation. The chamber is managed through a modern touchscreen controller that supports time-segment programming and real-time monitoring. USB and Ethernet interfaces ensure full GLP-compliant data documentation and export.
Safety is integral to the design, with a Class 3.3 independent temperature safety device, built-in alarm functions, and a self-diagnostic system. For practical usability, the chamber includes two telescopic stainless steel racks (expandable to 15), a 30 mm access port, and heavy-duty casters with brakes. The unit can be optionally equipped with ICH-compliant lighting for photostability testing.
Key Features:
-
Temperature range: –20 °C to +100 °C
-
Humidity range: 10% to 98% RH
-
Chamber volume: 1070 liters
-
APT.line™ preheating technology for even temperature distribution
-
Inverter compressor with energy-saving R‑290 refrigerant
-
Capacitive humidity sensor with steam humidification
-
Touchscreen controller with programmable time cycles
-
USB and Ethernet interfaces for data logging
-
Class 3.3 safety system with visual and acoustic alarms
-
Self-diagnostic and monitoring features
-
Door heating and adjustable fan speed
-
Ø 30 mm access port
-
Two stainless steel telescopic racks (expandable to 15)
-
Mobile construction with locking casters
-
Optional ICH lighting modules for photostability testing
The Binder KBF PRO 1060 is the ultimate choice for labs demanding maximum chamber volume, energy efficiency, and exacting control over climate conditions.
Specifications
Warranty: 2 years
Lead time: 1-2 weeks
| Designation | KBFPRO1060-230V |
| Article Number | 9020-0443 |
| Performance Data Temperature | |
| Temperature range | -20…100 °C |
| Max. heat compensation at 40°C | 1,000 W |
| Performance Data Climate | |
| Temperature range with humidity | 10…90 °C |
| Humidity range | 10…98 % RH |
| Temperature uniformity at 25°C and 60% RH | 0.3 ± K |
| Temperature uniformity at 40°C and 75% RH | 0.3 ± K |
| Temperature fluctuation at 25°C and 60% RH | 0.1 ± K |
| Temperature fluctuation at 40°C and 75% RH | 0.1 ± K |
| Recovery time after door was opened for 30 s at 25°C and 60% RH | 1 min |
| Recovery time after door was opened for 30 s at 40°C and 75% RH | 5 min |
| Recovery time after door was opened for 30 s at 85°C and 85% RH | 58 min |
| Measures | |
| Interior volume | 1,070 L |
| Net weight of the unit (empty) | 360 kg |
| Load per rack | 40 kg |
| Permitted load | 100 kg |
| Doors | |
| Unit doors | 2 |
| Inner doors | 2 |
| Internal Dimensions | |
| Interior width | 1,011 mm |
| Interior height | 1,250 mm |
| Interior depth | 847 mm |
| Wall clearance | |
| Wall clearance back | 180 mm |
| Wall clearance sidewise | 180 mm |
| Housing dimensions not incl. fittings and connections | |
| Width net | 1,285 mm |
| Height net | 1,951 mm |
| Depth net | 1,175 mm |
| Electrical data | |
| Housing protection acc. to EN 60529 | IP 20 |
| Rated Voltage | 208…240 V |
| Power frequency | 50/60 Hz |
| Nominal power | 1,9 kW |
| Nominal current | 7,9 A |
| Unit fuse | 16,0 A |
| Phase (Nominal voltage) | 1~ |
| Environment-specific data | |
| sound level at 25°C and 60 % RH | 50 dB(A) |
| Energy consumption at 25°C and 60% RH | 400 Wh/h |
| Energy consumption at 40°C and 75% RH | 450 Wh/h |
| Energy consumption at 85°C and 85% RH | 665 Wh/h |
| Fixtures | |
| Number of shelves (std./max.) | 2/16 |
Full list: see datasheet
