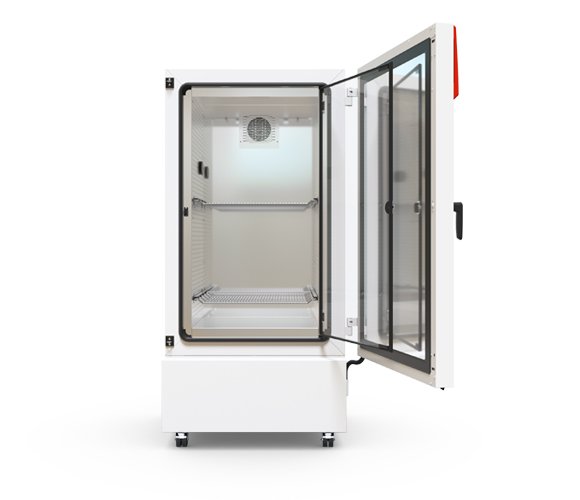

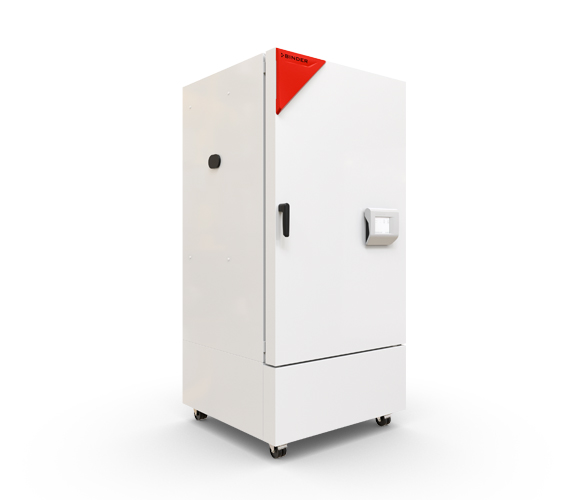

Binder KBF 470 constant climate chamber
€20.133,00 excl. VAT
Benefits:
- A reliable option for critical ICH stability testing thanks to maximum climate homogeneity, even when the unit is fully loaded
- Reliable: failsafe operation over the long term thanks to proven compressor technology and interior made of stainless steel
- Smart: signal triangle with light-up status display and ergonomic control terminal with touchscreen program controller
- Economical: up to 40% lower energy consumption than the previous model thanks to modern inverter cooling technology
Important features:
- Temperature range: 0°C to +70°C
- Humidity range: 10% to 80% RH
- Proven APT.line™ preheating chamber technology
- Up to 40% lower energy consumption compared to the previous model
- Energy-efficient cooling with modern inverter cooling unit
- Cooling with climate-neutral R-600a refrigerant
- Door heating to prevent condensation
- Adjustable fan speed
- Humidity regulation with capacitive humidity sensor and responsive steam humidification
- Robust housing design with HIT sandwich technology
- Stainless-steel inner chamber
- Inner doors made of metal oxide-coated safety glass
- Two racks made of stainless steel
- Large access port with silicone plug
- Floor-standing units (from model 260) featuring robust twin casters, with brakes at the front
- Intuitive touchscreen controller with time-segment and real-time programming
- Ergonomically adjustable control terminal (from model 470)
- Signal triangle with light-up status display (from model 470)
- Internal data logger, measured values can be read out in open format via USB
- Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarms
- Unit self-test for comprehensive status analysis
- Data interfaces: Ethernet, USB
- BINDER Multi Management Software APT-COM™ basic edition
- Optional light modules for ICH photostability testing (for models 260, 470, 720)
- Optional LED light modules for plant growth (for models from 260)
Description
Binder KBF 470 Constant Climate Chamber – 472 L Precision for ICH Testing
The Binder KBF 470 constant climate chamber is engineered for demanding ICH-compliant stability testing in pharmaceutical, biotech, and research labs. Featuring a 472 L stainless steel chamber, it ensures exact control of temperature (0 °C to +70 °C) and humidity (10% to 80% RH) even when fully loaded.
This model incorporates Binder’s APT.line™ preheating system and an efficient inverter compressor using eco-friendly R‑600a refrigerant, achieving up to 40% lower energy consumption compared to previous versions. It includes door heating to prevent condensation, adjustable fan speed, and premium insulation for reliable performance. The ergonomic touchscreen controller allows time-segment programming and real-time monitoring, while the built-in data logger (USB/Ethernet) supports GLP-compliant documentation.
Safety is paramount: the chamber features a Class 3.3 independent temperature safety device, visual and audible alarms, a self-test diagnostic, and a signal triangle with light-up status display. A large Ø 80 × 45 mm access port simplifies sensor integration. The floor-standing design includes twin casters with brakes for mobility and stability.
Optional LED light modules allow conversion into an ICH photostability or plant growth chamber. Robust yet flexible, the Binder KBF 470 climate chamber offers reliability, efficiency, and advanced functionality for sophisticated lab workflows.
Specifications
Warranty: 2 years
Lead time: 1-2 weeks
| Designation | KBF470-230V |
| Article Number | 9020-0480 |
| Performance Data Temperature | |
| Temperature range | 0…70 °C |
| Max. heat compensation at 40°C | 530 W |
| Performance Data Climate | |
| Temperature range with humidity | 10…70 °C |
| Humidity range | 10…80 % RH |
| Temperature uniformity at 25°C and 60% RH | 0.2 ± K |
| Temperature uniformity at 40°C and 75% RH | 0.2 ± K |
| Temperature fluctuation at 25°C and 60% RH | 0.1 ± K |
| Temperature fluctuation at 40°C and 75% RH | 0.1 ± K |
| Recovery time after door was opened for 30 s at 25°C and 60% RH | 1 min |
| Recovery time after door was opened for 30 s at 40°C and 75% RH | 4 min |
| Measures | |
| Interior volume | 472 L |
| Net weight of the unit (empty) | 225 kg |
| Load per rack | 40 kg |
| Permitted load | 90 kg |
| Doors | |
| Unit doors | 1 |
| Inner doors | 1 |
| Internal Dimensions | |
| Interior width | 656 mm |
| Interior height | 1,250 mm |
| Interior depth | 575 mm |
| Wall clearance | |
| Wall clearance back | 100 mm |
| Wall clearance sidewise | 180 mm |
| Housing dimensions not incl. fittings and connections | |
| Width net | 930 mm |
| Height net | 1,951 mm |
| Depth net | 900 mm |
| Electrical data | |
| Housing protection acc. to EN 60529 | IP 20 |
| Rated Voltage | 220…240 V |
| Power frequency | 50/60 Hz |
| Nominal power | 1,4 kW |
| Nominal current | 5,8 A |
| Unit fuse | 16,0 A |
| Phase (Nominal voltage) | 1~ |
| Environment-specific data | |
| Schalldruckpegel bei 25°C und 60 % r.F. | 51 dB(A) |
| Energy consumption at 25°C and 60% RH | 265 Wh/h |
| Energy consumption at 40°C and 75% RH | 285 Wh/h |
| Fixtures | |
| Number of shelves (std./max.) | 2/16 |
Full list: see datasheet
