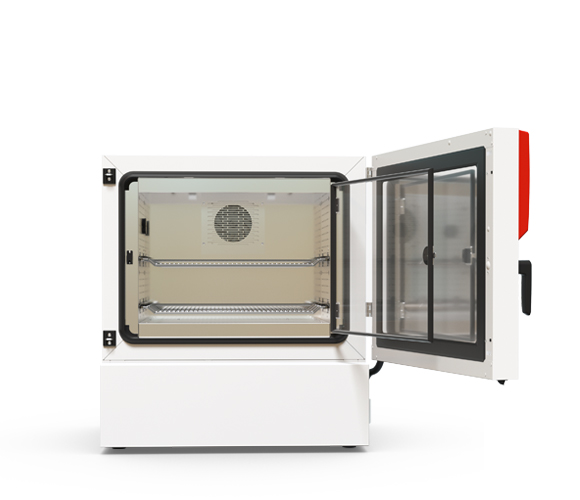

Binder KB 130 cooling incubator
€8.116,00 excl. VAT
- Volume: 127 liter
- Temperature range: 0°C to +70°C
- Proven APT.line™ preheating chamber technology
- Up to 40% lower energy consumption compared to the previous model
- Energy-efficient cooling with modern inverter cooling unit
- Cooling with climate-neutral R-600a refrigerant
- Door heating to prevent condensation
- Robust housing design with HIT sandwich technology
- Interior made completely of stainless steel
- Inner doors made of metal oxide-coated safety glass
- Two racks made of stainless steel
- Large access port with silicone plug
- Tabletop units (up to model 130) are stackable with stacking adapter
- Floor-standing units (from model 260) featuring robust twin casters, with brakes at the front
- Simple programming of a second set temperature value
- Internal data logger, measured values can be read out in open format via USB
- Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarms
- Unit self-test for comprehensive status analysis
- Data interfaces: Ethernet, USB
Description
Binder KB 130 Cooling Incubator – Efficient and Precise Temperature Control for Sensitive Applications
The Binder KB 130 cooling incubator is a high-performance, energy-efficient solution for laboratories that require precise temperature control for microbiological cultures, pharmaceutical storage, stability testing, and environmental research. With a temperature range of 0 °C to +70 °C, this mid-sized unit delivers consistently reliable results, even under full load conditions.
Equipped with inverter compressor technology and a climate-neutral R-600a refrigerant, the KB 130 offers up to 40% energy savings compared to its predecessor—without compromising on performance. Binder’s APT.line™ preheating chamber technology ensures uniform temperature distribution across the entire chamber, while door heating effectively prevents condensation.
The Binder KB 130 is built with a robust stainless steel interior, metal oxide-coated safety glass inner doors, and HIT™ sandwich-construction housing for durability and ease of cleaning. It also features user-friendly controls with programmable dual temperature setpoints and a built-in data logger for compliance and traceability. With its stackable design, it’s ideal for labs with limited floor space.
Integrated USB and Ethernet interfaces allow for simple data export and remote monitoring, while the Class 3.3 temperature safety system (DIN 12880) offers visual and audible alarms for secure operation.
Key Features:
-
Temperature range: 0 °C to +70 °C
-
Energy-efficient inverter compressor cooling
-
Up to 40% energy reduction vs. previous model
-
APT.line™ preheating chamber for uniform thermal distribution
-
Climate-neutral R-600a refrigerant
-
Door heating to reduce condensation
-
130-liter stainless steel chamber with glass inner door
-
Stackable design with optional stacking adapter
-
Class 3.3 temperature safety device (DIN 12880)
-
USB and Ethernet connectivity for data logging and integration
-
Internal data logger with open-format export
-
Programmable dual temperature setpoints
The Binder KB 130 cooling incubator delivers the perfect balance of compact design, energy savings, and high-performance temperature control, making it ideal for medium-sized workloads in modern, sustainability-conscious laboratories.
Specifications
Warranty: 2 years
Lead time: 1-2 weeks
| Designation | *KB130-230V |
| Article Number | 9020-0472 |
| Performance Data Temperature | |
| Temperature range | 0…70 °C |
| Temperature uniformity at 37°C | 0.2 ± K |
| Temperature fluctuation at 37°C | 0.1 ± K |
| Max. heat compensation at 37°C | 270 W |
| Recovery time after door was opened for 30 s at 37°C | 3 min |
| Measures | |
| Interior volume | 127 L |
| Net weight of the unit (empty) | 124 kg |
| Load per rack | 25 kg |
| Permitted load | 50 kg |
| Doors | |
| Unit doors | 1 |
| Inner doors | 1 |
| Internal Dimensions | |
| Interior width | 656 mm |
| Interior height | 500 mm |
| Interior depth | 386 mm |
| Wall clearance | |
| Wall clearance back | 100 mm |
| Wall clearance sidewise | 100 mm |
| Housing dimensions not incl. fittings and connections | |
| Width net | 900 mm |
| Height net | 1,005 mm |
| Depth net | 710 mm |
| Electrical data | |
| Housing protection acc. to EN 60529 | IP 20 |
| Rated Voltage | 220…240 V |
| Power frequency | 50/60 Hz |
| Nominal power | 1,2 kW |
| Nominal current | 5,0 A |
| Unit fuse | 16,0 A |
| Phase (Nominal voltage) | 1~ |
| Environment-specific data | |
| Sound-pressure level at 25°C | 47 dB(A) |
| Energy consumption at 37°C | 125 Wh/h |
| Fixtures | |
| Number of shelves (std./max.) | 2/6 |
- LED light bars: LED light bars in three different lengths (30, 50, 90 cm) can be easily and variably positioned in the BINDER unit, including various attachment options and control unit. Additional light bars can be added as desired.
- Access port with silicone plug: For introducing external measuring instruments. Large selection of different diameters
and positions (left, right, or top) - Interior lighting: The climate-resistant LED light switches on automatically when the door is opened.
- Services: You can access our installation, maintenance, calibration, validation, or warranty services by taking out a Maintenance Service Agreement or by simply getting in touch when you need us. More information is available in the accessories and services chapter.
